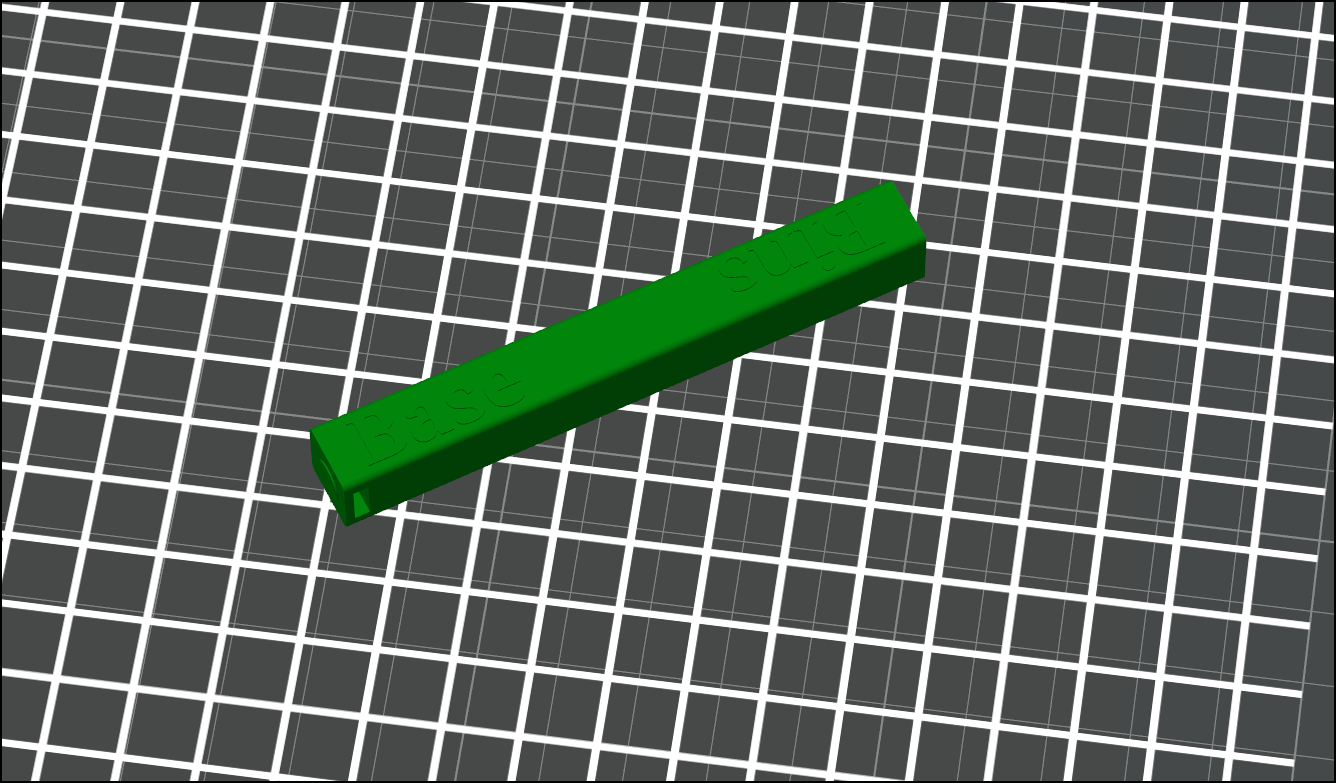

Gridfinity Magnet Jig - Double Ended 3D model thumbnail

Gridfinity Magnet Jig - Double Ended

by Ryan · via Printables
FormatSTL
CategoryOrganisation
LicenseCC BY-NC-SA
Triangles9.0k
UploadedSep 7, 2024
⬇ 135 downloads ❤ 10 likes 👁 303 views

Description

Simple jig to help install magnets in gridfinity baseplates and bins. Has a cutout on each end to insert a 6x2mm magnet - one end of the baseplates, and one end for the bins. Each end is labelled. Insert your magnets in the correct orientation so that they help orient the magnets in the respective baseplates or bins. This is a remix of TheMops model - I have simply cut both of his jigs in half and stuck them together so that you only need one jig instead of two. I only did this for his 6x2mm version (the standard gridfinity size).
magnet jig gridfinity
