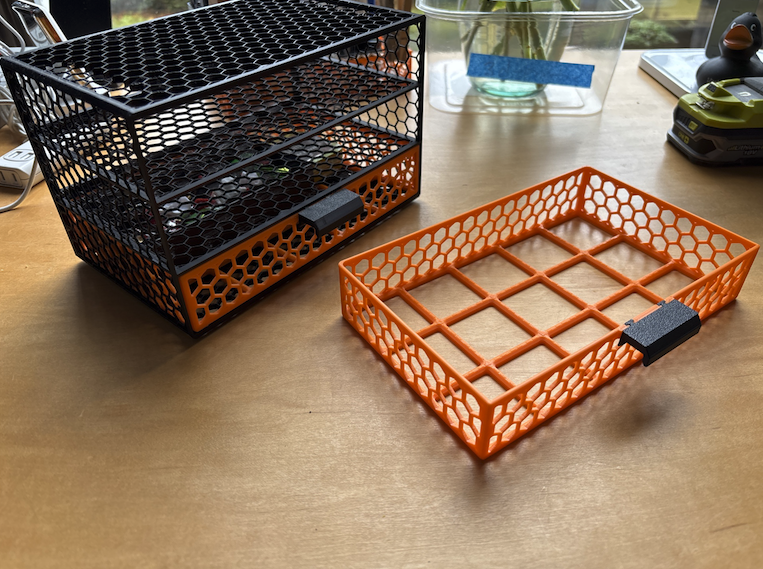

Gridfinity Modular Drawer System and Case with honeycomb walls 3D model thumbnail

Gridfinity Modular Drawer System and Case with honeycomb walls

by 駄目g · via Printables
FormatSTL
CategoryOrganisation
LicenseCC BY-NC
Triangles120.8k
UploadedMar 26, 2025
⬇ 2.5k downloads ❤ 981 likes 👁 16.5k views

Description

Update: for a new version of this model, including other sizes, gridfinity top and bottom and solid walls, please visit https://makerworld.com/en/models/1234733 Introduction A remix of the gridfinity 5x3x5 (3 drawers) case ( Hugo ' s version of Chipp Walters ) with a honeycomb pattern. Thanks to Hugo for providing fusion360 file for the case. It is also an improvement over souldbrotherb 's since the honeycomb is aligned such that there are no horizontal overhangs, which improves the quality of the honeycomb. The drawer can be used as a 5x3 carrier of gridfinity bins. The drawer is a bit stronger than the case. There are significant filament savings compared to the original case and drawer. The case requires 221g and the drawer 45g. Printing the case requires a well calibrated printer/filament. I have printed them with 3 walls, using PLA. Compatible with the original drawer pull (and it does not protrude inside the drawer)
case drawer gridfinity modularsystem

Originally published on Printables
