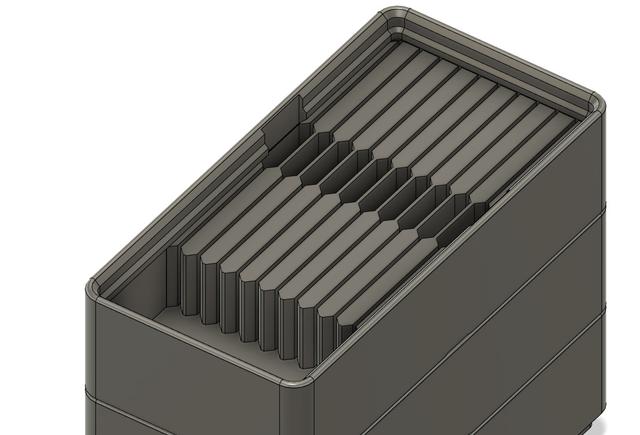

Gridfinity resistor storage bin 3D model thumbnail

Gridfinity resistor storage bin

by TJ3D · via Printables
FormatSTL
CategoryElectronics
LicenseCC BY-NC
Triangles7.5k
UploadedJan 4, 2025
⬇ 1.3k downloads ❤ 257 likes 👁 11.7k views

Description

Gridfinity compatible Resistor storage solution Couldnt find any a way to easily store and stack sorted resistors. so made my own model. Room for up to 5 resistors per slot 11 slots in the base model. 9 normal slots and 2 extra wide in the alternative model. Great for sorting smaller quantities of resistors in a small form factor. exterior size is just 42x84x24mm Works with 0.4 or 0.6mm layer width at any layer height. No supports required. Comes with a basic locking mechanism so resistors wont fall out during travel. The slotted opening in the locking plate can also be used to fetch resistors out of the trays.
storage resistor resistorbox components gridfinity
