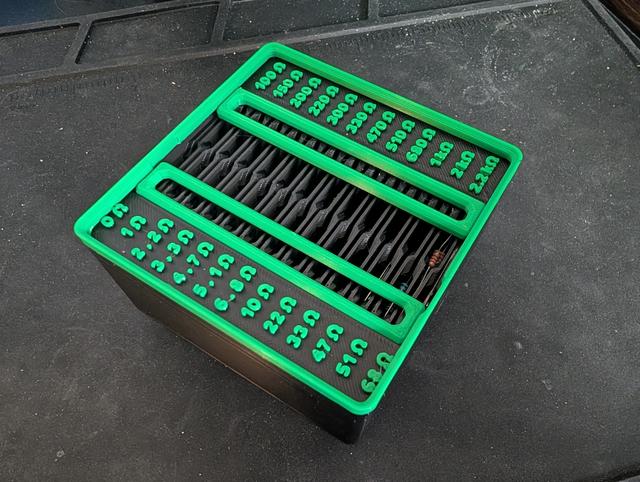

Gridfinity Ridge Style Resistor Bin

Whereas the original only stored 5 resistors per slot with 11 slots, this model can store 15 resistors per slot with 25 slots. Models with no labels, or two different sets of labels are provided. The Fusion 360 parametric modeling file has also been added if you wish to customize the labels to your needs. Simply edit the “Resistor Labels B” Sketch and change the text accordingly. The tray lock tool has also been redesigned to function as a multitool that can be used to help push resistors in OR out of the storage bin as shown below: 📷 Image redacted — claim this model to add your own media 📷 Image redacted — claim this model to add your own media Color should be switched around Layer 212 or 213 (Height ~32.50mm) to make the labels more readable.
