Gridfinity Ruler 5+6 Grids
by Tritschi · via Printables
| Format | STL |
| Category | Tools |
| License | CC BY-NC-SA |
| Triangles | 45.2k |
| Uploaded | Jan 3, 2025 |
⬇ 2.5k downloads
❤ 242 likes
👁 7.6k views
Description

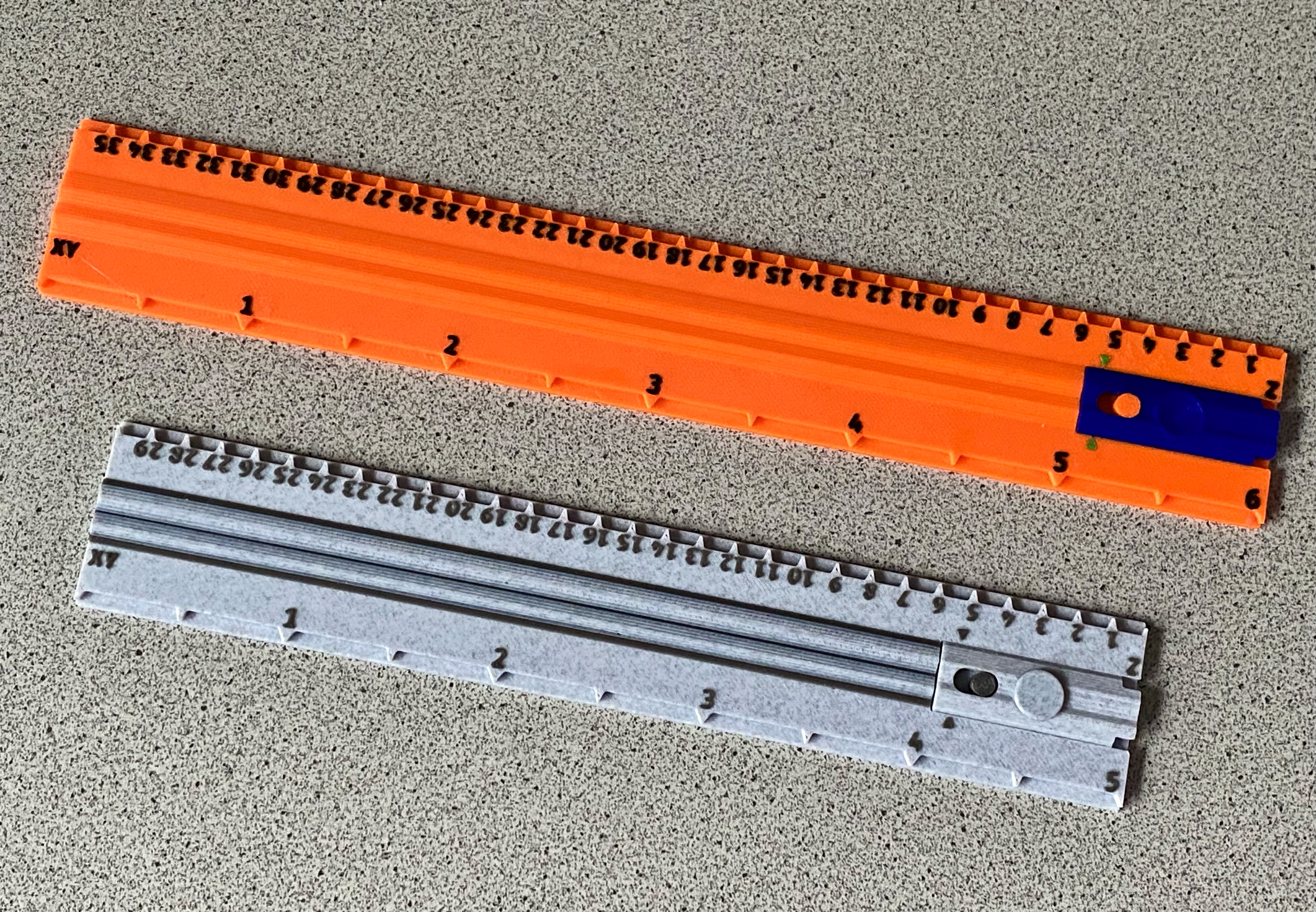

If you can print 252mm long, you can print the 6-grid-version. If you have less print capabilities or definitely want the 5-grid-version, use this. Slider and Pin fit both. At 3.8mm or adequate (depending on your layerheight) you may implement a color change for better readability of the numbers. The slider is used for checking height. Without slider out there is the pure height pattern of 7mm. Approx. 3.75mm is added for total height. Therefore, I added this slider, to give you a rough idea of the total height of the bin. I am configent, that you'll figure it out. You're smart! Designed in TinkerCad from imported file of “coincidence”. Thanks for sharing this great model. Printed on my BambuLab A1. After checkimnh that the slider moves seamlessly, you can insert the pin for locking the slider. I used some Loctite for this. Explore my other Printables: https://www.printables.com/de/@Tritschi
