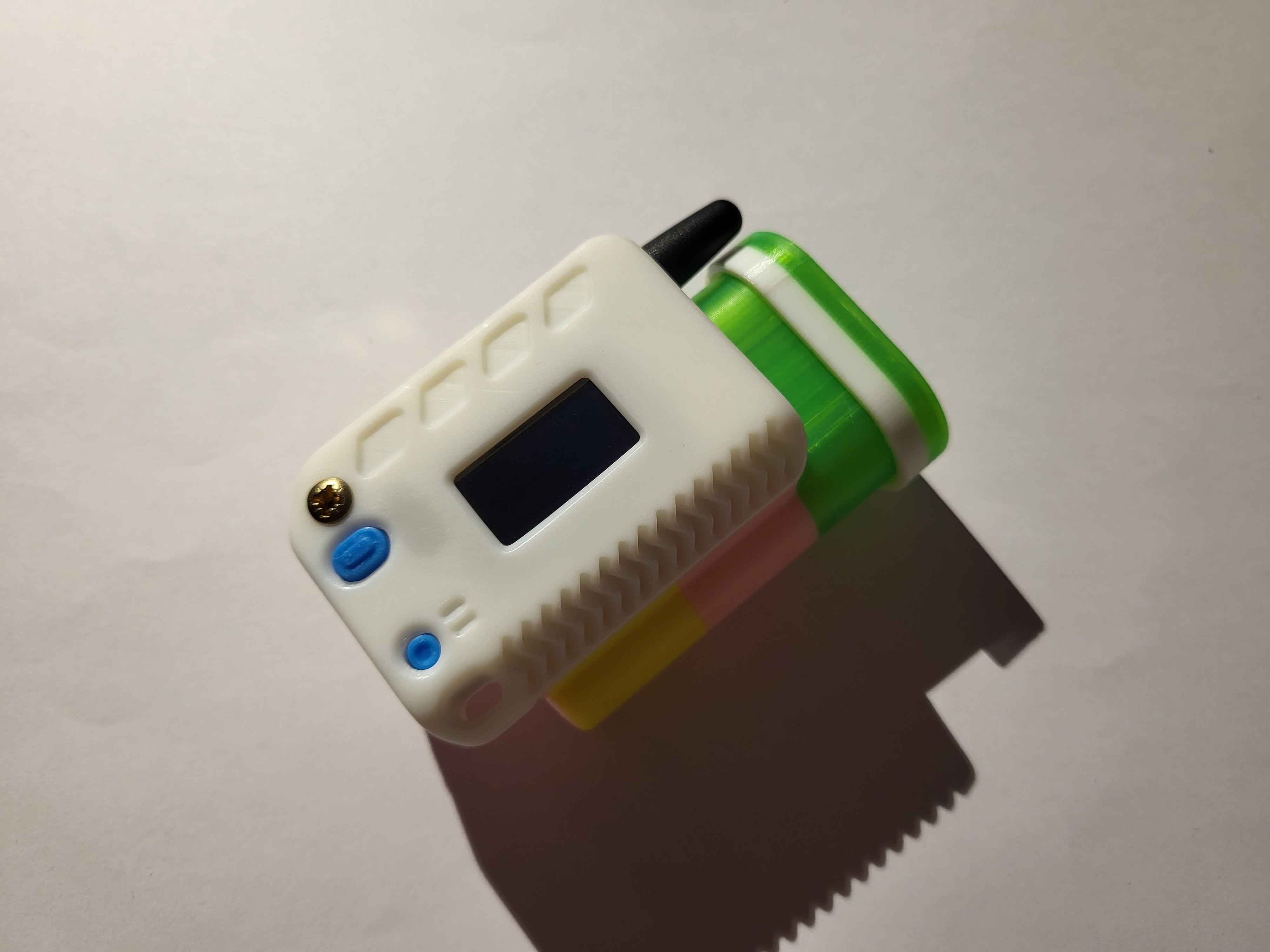

H1 with dual 18650 battery 3D model thumbnail

H1 with dual 18650 battery

by Abstract445 · via Printables
FormatSTL
CategoryElectronics
LicenseCC BY-NC-SA
Triangles13.1k
UploadedJul 24, 2025
⬇ 18 downloads ❤ 6 likes 👁 586 views

Description

The stock batteries for the H1 case can be hard to find and don't last for long, I thought it would be hilarious to instead add 2 behemoth 18650 battery slots on the back, demolishing all kind of practicality in the name of battery capacity and replaceability. Batteries are meant to be wired in parallel and are not guaranteed to be compatible, so: WARNING: LITHIUM BATTERIES ARE DANGEROUS. BE CAREFUL! MAKE SURE BOTH BATTERIES ARE CHARGED TO THE SAME LEVEL! OTHERWISE THEY WILL RAPIDLY EQUALIZE. I AM NOT RESPONSIBLE FOR ANY KIND OF DAMAGE!!! The cap can also be a little tight so if youre using particularly stiff filament you might want to print the cap slightly larger. You can salvage electrodes from other battery holders and heat set them in place or you can just use folded up aluminum foil. I might make a single battery ver is the future since this is stupidly overkill. This is my first public model, be nice!
case 18650 18650battery h1 meshtastic heltec

Originally published on Printables
