Hadley Altitude Bearing Spacer
by Pelf · via Printables
| Format | STL |
| Category | Mechanical |
| License | CC BY-NC |
| Triangles | 1.5k |
| Uploaded | Aug 8, 2023 |
⬇ 43 downloads
❤ 4 likes
👁 656 views
Description

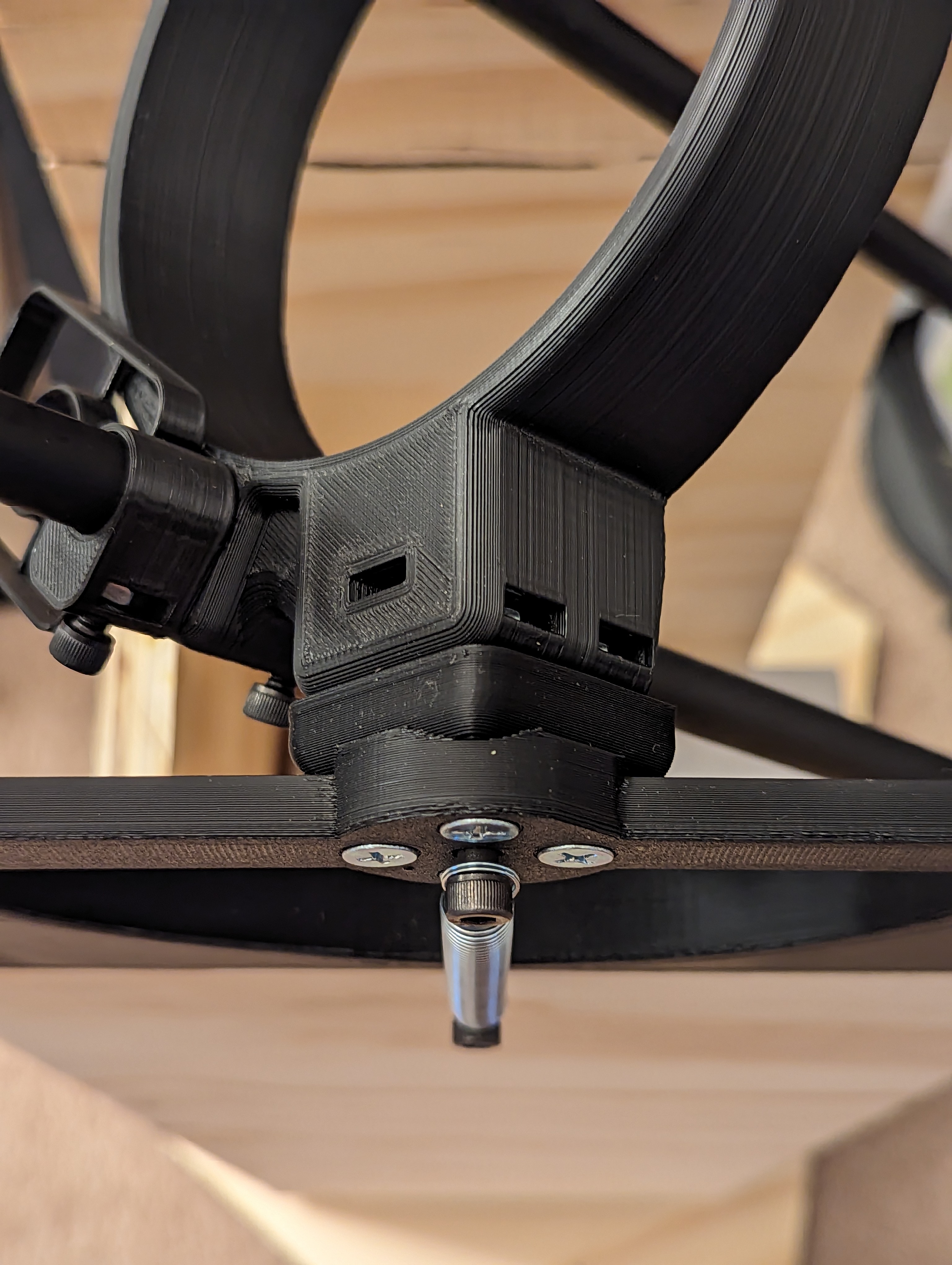

Wooden hadley mounts need the Mount_Interface_wider_WOOD-ROCKER-ONLY.stl If you printed one of the other ones like I did (I wanted the one with the planets on it) then the altitude bearings will be too close together for wooden mounts. Add this in between the mount interface and the Z bearings. Match the rounds on the shim to the ones on the mount interface. You will need longer screws.
AI Analysis: This object is a mechanical component designed for precision alignment in telescopes. It serves as a spacer to maintain proper spacing between parts, ensuring stability and accurate positioning. The component features a robust mounting structure with screws and a cylindrical bore for secure attachment.
