Hadley bearing interface with PTFE (Metric)
by Twiegel · via Printables
| Format | STL |
| Category | Mechanical |
| License | CC BY-NC-SA |
| Triangles | 6.9k |
| Uploaded | Mar 9, 2025 |
⬇ 25 downloads
❤ 3 likes
👁 248 views
Description

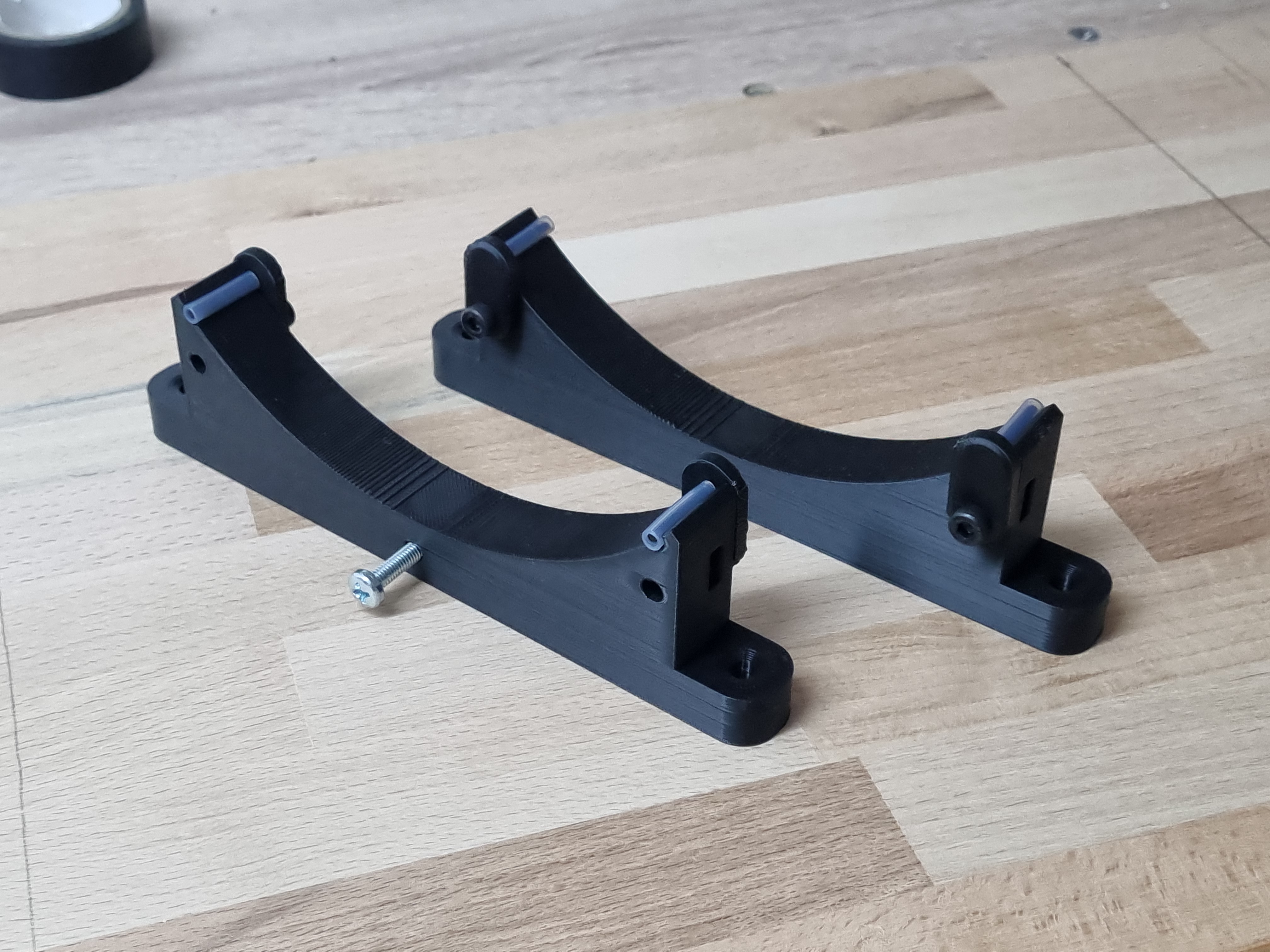

To reduce the altitude bearing stiction of my Hadley telescope, I created these bearing rings that use PTFE tubes as an interface material. The reduced stiction will require a well balanced telescope and possibly a spring to put more pressure on the bearing. Built around standard 4mm OD, 2mm ID (4x2) PTFE tubes. These are cut to ~17mm length. The Tube holders are fastened to the insides of the bearing interfaces. My print settings: PLA 4 walls, 20% infill (PTFE_holder has to be printed on side, using standard supports to ensure strength of rod) Hardware: 4 - M4 nuts (+1/side for spring) 4 - M4x12 bolts (min length) Enjoy!
