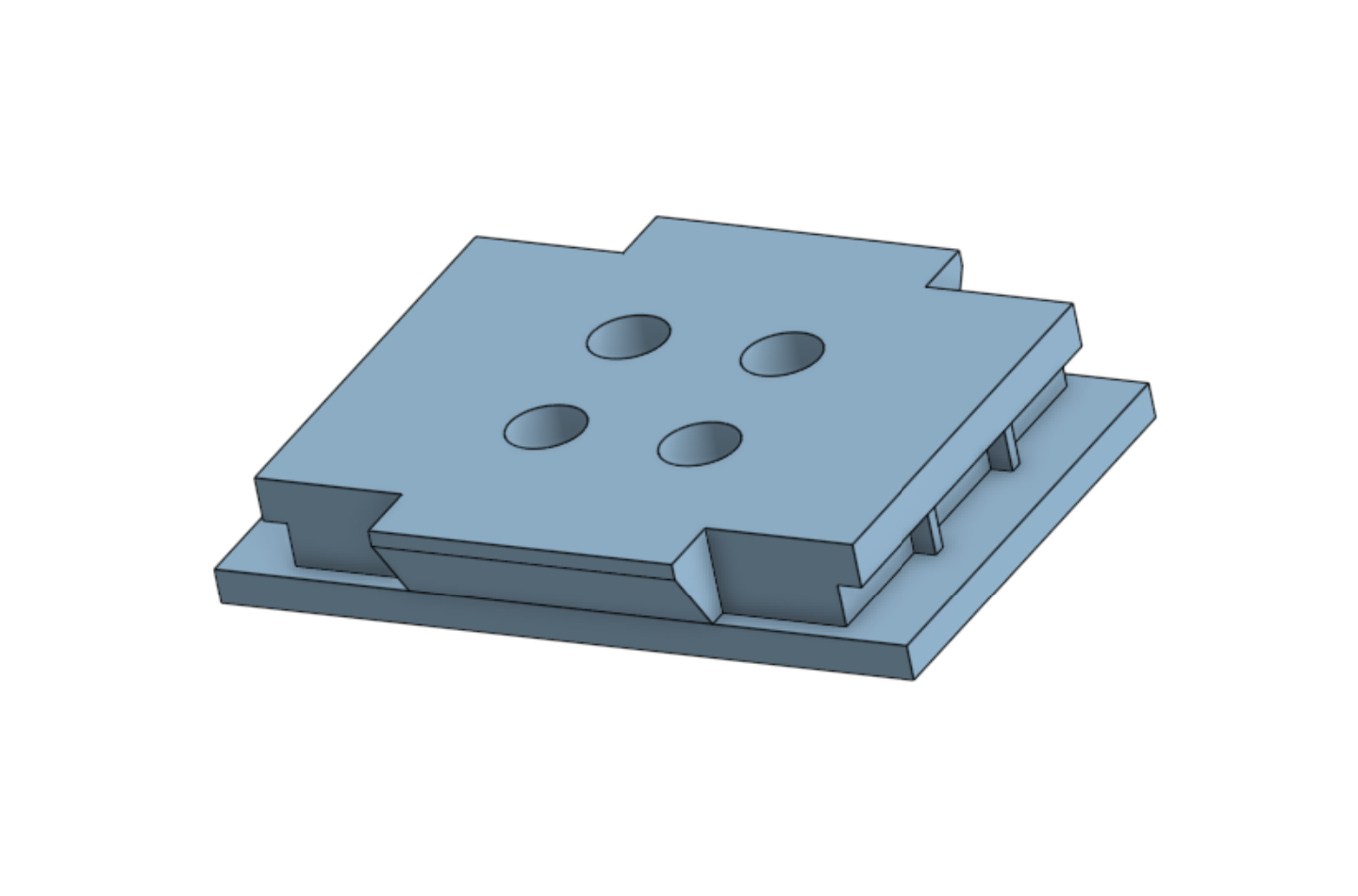

Hadley Tripod Adapter (Metric M4) for YunTeng 3D model thumbnail

Hadley Tripod Adapter (Metric M4) for YunTeng

by hmqgg · via Printables
FormatSTL
CategoryMechanical
LicenseCC BY-NC
Triangles4.8k
UploadedMay 10, 2023
⬇ 56 downloads ❤ 4 likes 👁 327 views
⬇ Download STL 👁 View Details

Description

This design is for Hadley Tripod Bracket M4 Metric and YunTeng VCT-series tripod. Open Onshape to customize it. Print Guide Supports: No (though there are some overhang parts) Perimeters: 3+ Infill: 40% - 60%
AI Analysis: This is a mechanical adapter component designed for mounting a tripod to a telescope. It features a rectangular base with four circular mounting holes and a slightly raised platform for stability. The adapter is specifically engineered to connect the tripod legs to the telescope's mounting system, providing a secure and adjustable connection point.
mount tripod telescope quickrelease hadley

Originally published on Printables
