Hand Plane Mounts for Wall Control

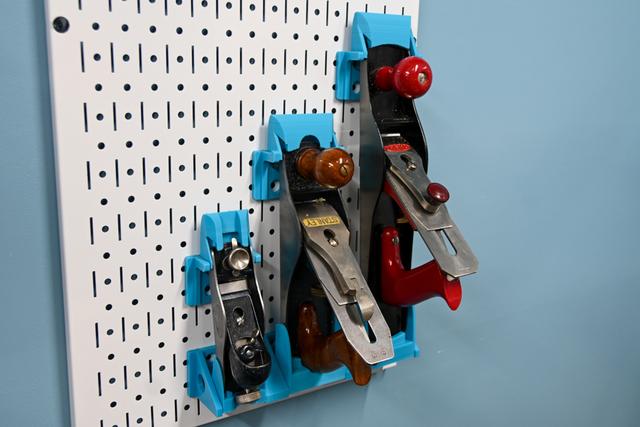

This uses the DDD Printable Wall Control System ( github ) to mount the planes. Planes: Stanley No 60 ½ Block Plane Stanley No 4 Smooth Plane Stanley No 5 Jack Plane Note - I have a Fulton plane of similar dimensions, but it is unlikely that anyone else owns this. I have instead posted a mount for a standard No 5 Jack Plane dimensions, but I have not physically tested it. The top pieces will require support when slicing, I tried to keep this to a minimum. There is a base and a top component to the mounts. The base requires inverted side pieces, and the top requires the standard. See the photos. I use inverted 2x2 angle brackets for the base ( Left , Right , Center ), and 2x1 L Bracket for the top ( Left , Right ). I'd recommend using the locking spacers facing the wall mount, the 2x2 will work for the 60 ½, the 2x3 behind the No 4, and the 2x4 behind the No 5 . These can be used to lock in the mount using the threaded pin . If you have another similar plane that you'd like to mount, contact me with dimensions and I can probably make a version for you.
