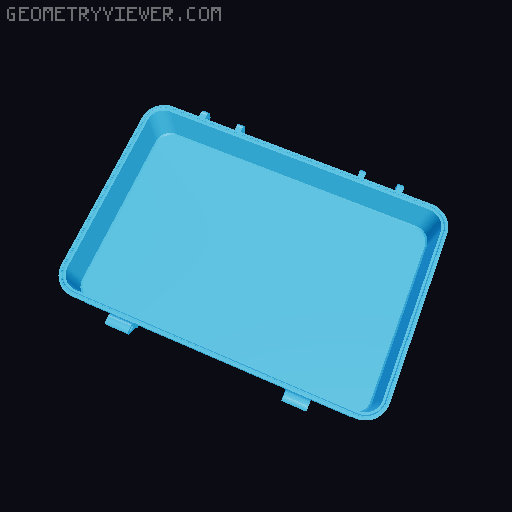

HDZero Goggle / Goggle 2 Hard Case
by DrewLittleFPV · via Printables
| Format | STL |
| Category | Electronics |
| License | CC BY-NC-SA |
| Triangles | 5.2k |
| Uploaded | Jul 18, 2025 |
⬇ 56 downloads
❤ 13 likes
👁 384 views
Description
This is a remix of MDHR's goggle case design, I wanted to make the overall size of the case more compact, add space for TrueRC patch antennas in front of the goggle, and add some lens protection to prevent the strap from touching them. I have used Whity's parametric rugged case many times in the past and it has always served me well. This model requires 6x M3x30mm screws Foam for the top lid (5mm gap if using TrueRC stubby antennas) There is 5mm clearance from the top of the TrueRc stubby antennas and the top of the case, The foam included with the goggles 2 works fine here but a higher quality foam would be nice. I recommend using modifier blocks to create 100% infill around the hinge areas. The TPU insert is a very long print, the side walls of the insert could be thinned or removed to reduce print time substantially, and the goggle would still be securely held in place.
