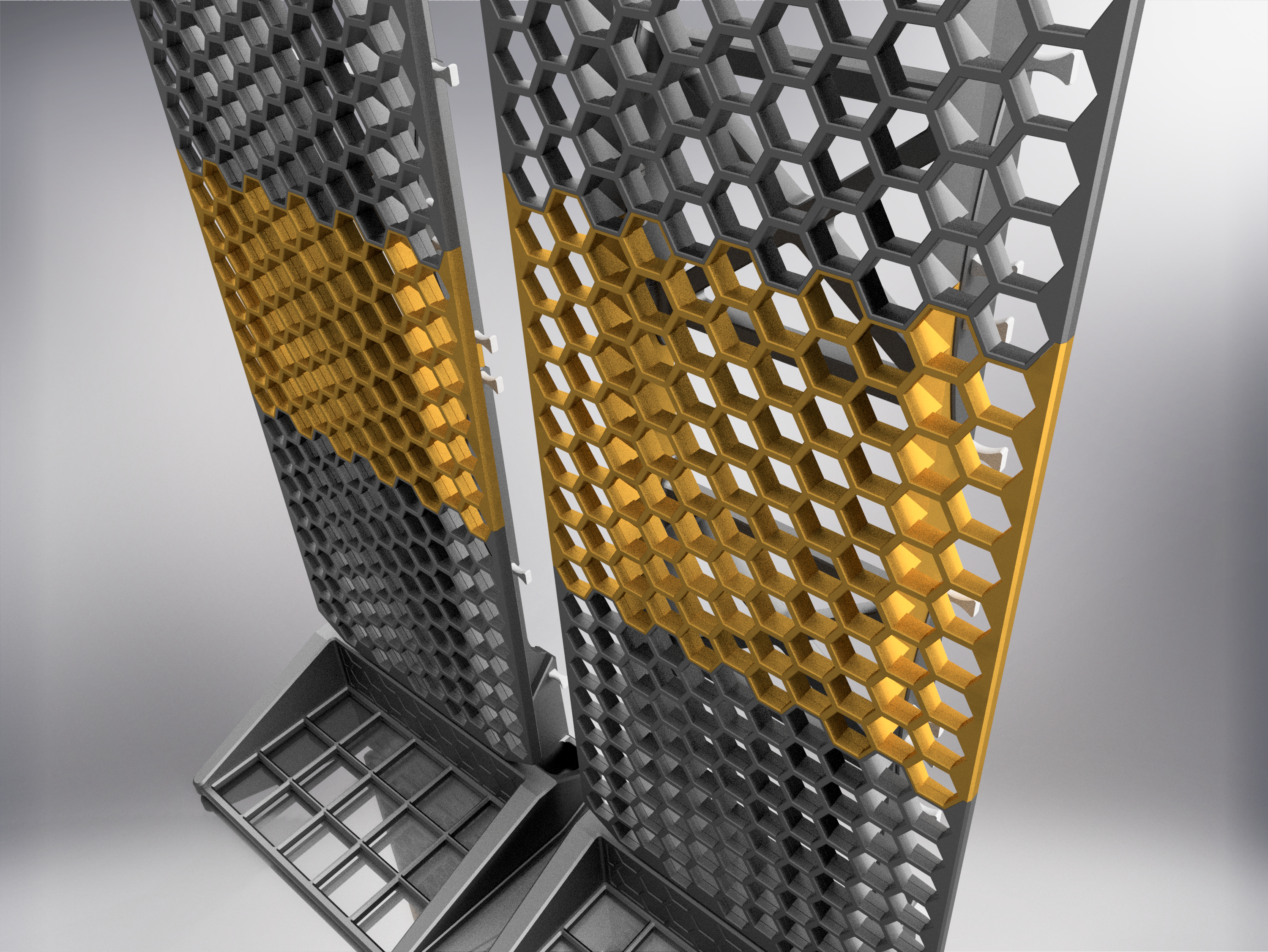

Height extensions for KYZ HSW Display Stand - Large

Introduction Soon after the release of the KYZ HSW Display Stand , many requests were made for a height extension to increase the storage area. This adds two sizes of extensions: 7 hex extension for an 165mm height increase 9 hex extension for a 212mm height increase Please common sense in designing your tool board or display - don't put heavy things right at the top. Another base such as this Gridfinity Base may be a good idea as it's larger and can be weighed down with Gridfinity units. This connector upgrade may be useful to significantly reduce the overall flexibility of the board. Materials Any stiff material (PLA/ABS/PETG, etc) Whilst PLA will be fine for general indoor use, be wary of using PLA if this will be in a hot car, or in the sun on a warm day (especially if it's a dark colour) (The red one in the photos is made with ABS) Print settings Tested with a 0.4mm nozzle. With this: If PETG - use 4 perimeters If PLA/ABS/ASA/PETG-CF/etc. - use 3 perimeters 4 bottom layers and 5 top layers Infill of your choice Print outer walls slowly for a strong part with consistent gloss level If your printer has an auxiliary fan, turn this off - the layer times are already high to ensure each layer is cooled before the next layer, and there are very few overhangs to worry about The rest is up to you General precautions apply for printing large parts - ensure your build plate is clean (wash with hot water and dish soap and dry with a clean towel), add mouse-ears and/or apply some glue in the corners if you often have adhesion issues. Support If you would like to say thanks, please post a make and share here and on socials. You could buy me a few metres of plastic on Ko-Fi otherwise, please post a make and check out my other HSW models in this collection . If you are using these stands as a part of your business and are finding it helpful, please consider buying this price label model to support more projects like this. Remixes with significant changes are very welcome.
