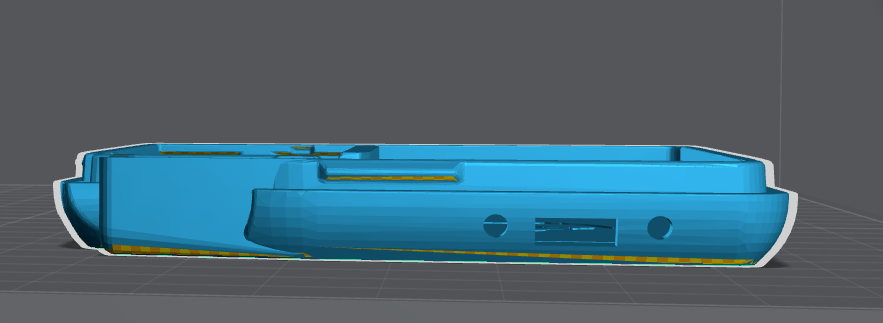

Heltec LoRa 32 V3 HT Slim Case w/ straight SMA and switch on/off 3D model thumbnail

Heltec LoRa 32 V3 HT Slim Case w/ straight SMA and switch on/off

by leogoss · via Printables
FormatSTL
CategoryElectronics
LicenseCC BY-SA
Triangles17.9k
UploadedJul 11, 2025
⬇ 21 downloads ❤ 7 likes 👁 356 views

Description

This is a slight modification of Alley Cat ( https://www.printables.com/@AlleyCat )'s Heltec LoRa 32 V3 HT Slim Case found here: https://www.printables.com/model/936437-heltec-lora-32-v3-ht-slim-cases I didn't have a right angle SMA connector so I extended the antenna port a little to fit the straight SMA I did have. I also did some smaller adjustments to make it a little easier for me to print and assemble. Now with the version that has a hole for a 2.5 switch to connect and disconnect the heltec v3
heltecv3

Originally published on Printables
