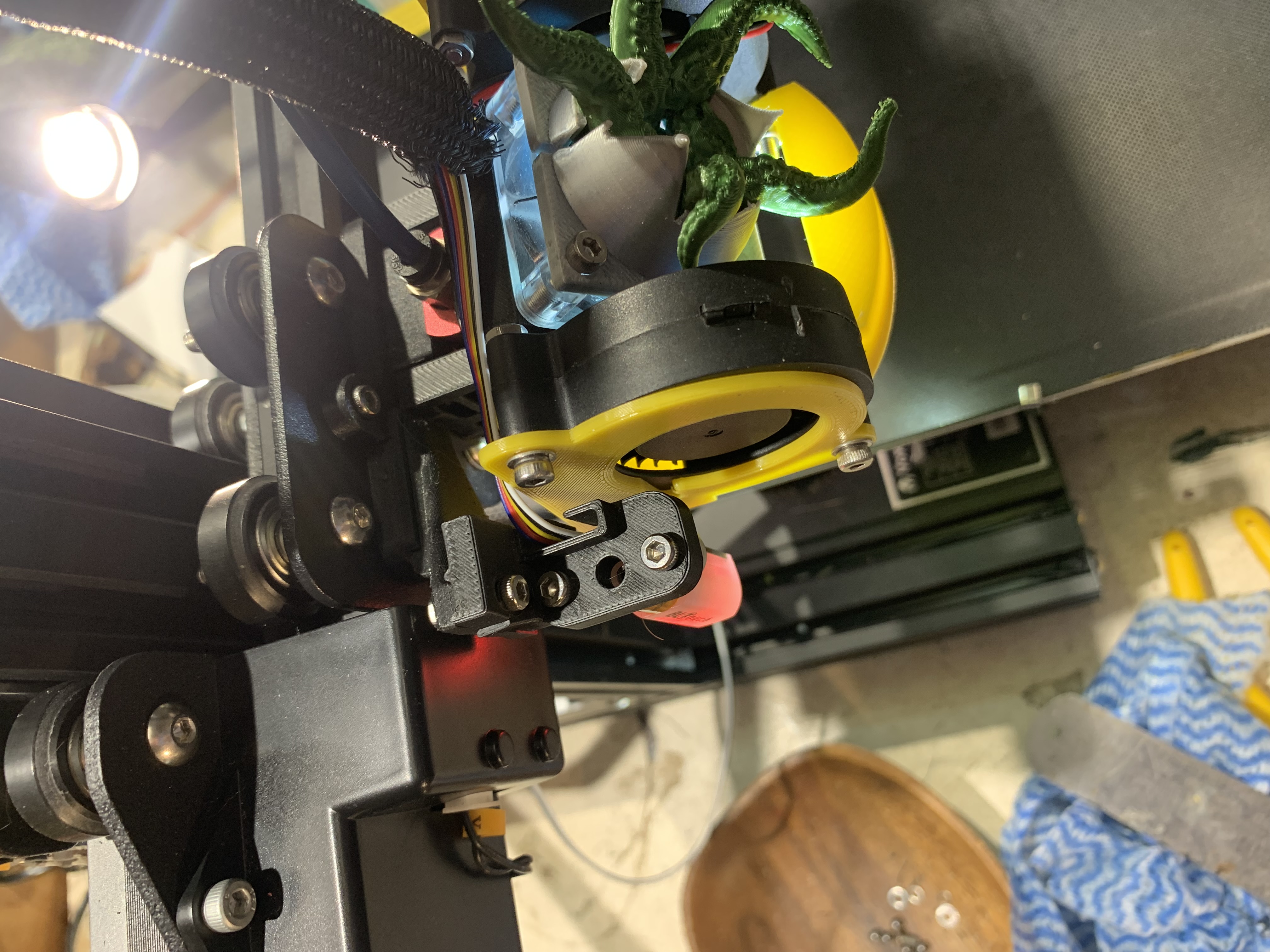

Hero Me Gen 6 Frame Adapter with integrated BL Touch Mount For Voxelab Aquila
by John Krani · via Printables
| Format | STL |
| Category | Art |
| License | CC BY-SA |
| Triangles | 13.3k |
| Uploaded | Jul 9, 2022 |
⬇ 18 downloads
❤ 2 likes
👁 434 views
Description
When using the hero me on the Aquila, the provided BL Touch wings contact the gantry when homing. I first printed a custom BL touch wing, but it was slightly fragile. So I integrated the wing into the Aquila adapter bracket (voxelab_aquila_pro-oem-mk8-ms-bms-gantry_adapter.stl). It's a bit quick and dirty but works well. Offsets are: x_offset: -55 y_offset: -19
AI Analysis: This is a mechanical part designed for use with the Voxelab Aquila platform. It features an integrated BL Touch Mount for precise positioning of the model. The part includes a frame adapter that connects to the Voxelab Aquila's structure, providing stability and alignment for the model. Notable features include the integrated BL Touch Mount and the specific design for the Aquila platform.
Originally published on Printables
