HGX Lite Extruder Shell with 16mm Shaft
by Brooks · via Printables
| Format | STL |
| Category | Art |
| License | CC BY-NC |
| Triangles | 40.7k |
| Uploaded | Jun 12, 2024 |
⬇ 713 downloads
❤ 111 likes
👁 5.2k views
Description

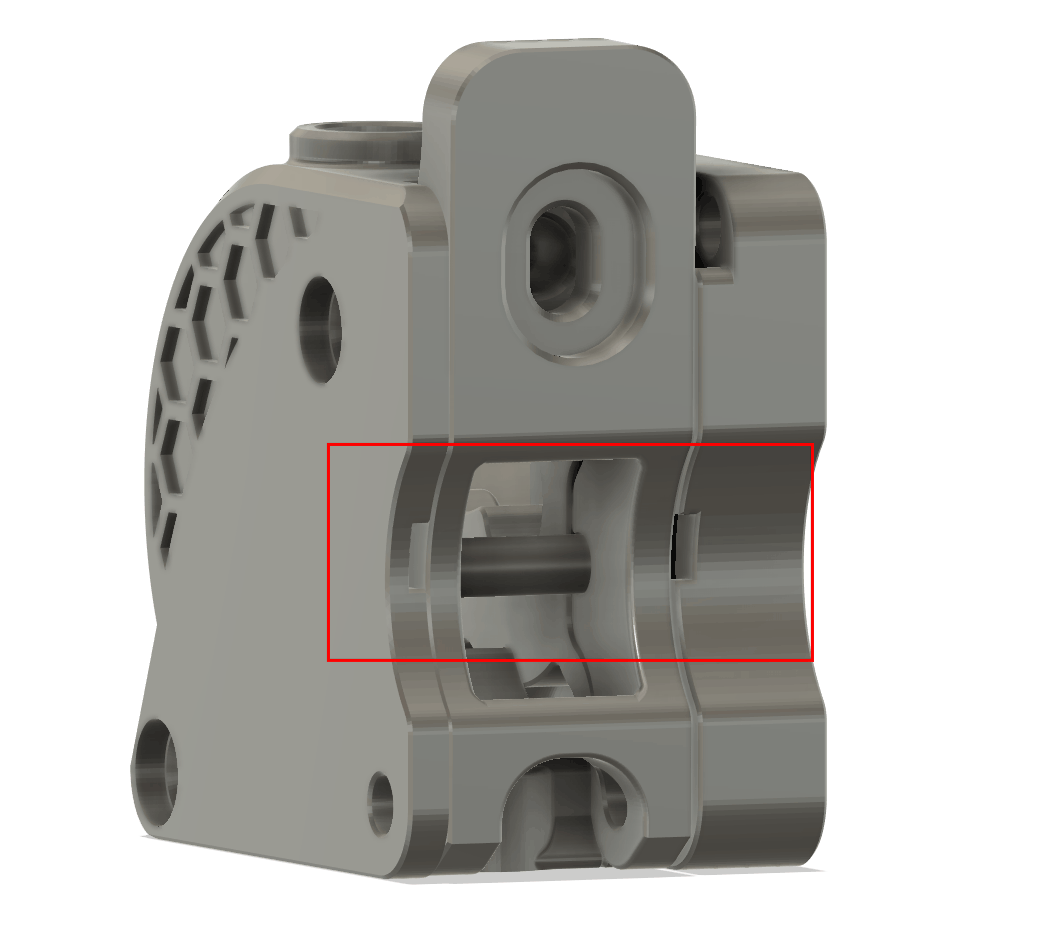

I wanted to use LGX Lite Extruder FDM case model by SIVIS, but I couldn't sand down the shaft. Therefore, I made a hole to allow the latch to move freely. rotation_distance53.494165gear_ratio44:10, 37:17 Re-calibrate your own value for rotation_distance
AI Analysis: This is a mechanical part designed for use in a extruder assembly. It features a 16mm shaft and is constructed from a durable material with precise machining. The part includes a hexagonal section for mounting and a cylindrical shaft for the extruder's filament feed mechanism. Notable features include the integrated cooling channels and the precise alignment of the components.
Originally published on Printables
