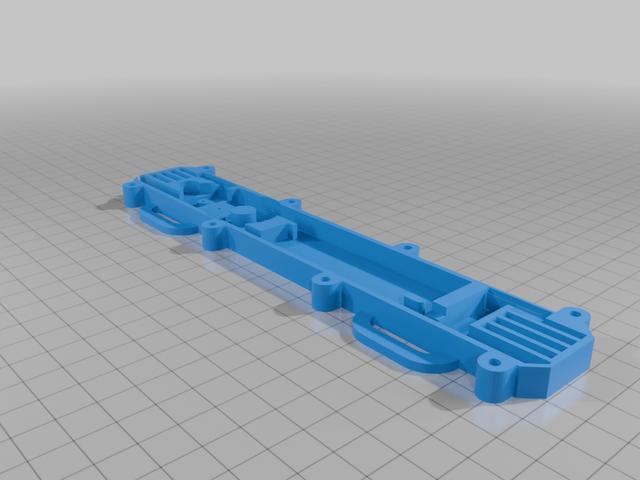

Hidden Blade, inspired by imdeepain reborn's design 3D model thumbnail

Hidden Blade, inspired by imdeepain reborn's design

by shinyringz · via Thingiverse
FormatSTL
CategoryMechanical
LicenseCC BY-SA
Triangles3.7k
UploadedApr 16, 2026
⬇ 52 downloads ❤ 1 likes 👁 47 views

Description

This is a project I started a while ago. Recently, I got back to it and improved it a little. I got mine to work, but not that well because I used cheap, small rubber bands instead of springs. The thing as a whole does work, just needs enough power to eject and retract the blade by spinning the gears. On the base, where the two locks go, I used a spring from a pen that I straightened out, and I just used a tiny bit of hot glue to keep them in place. It worked well for me. The gears are held in place by paper clips. I recommend watching the videos on imdeepain reborn’s channel, as he’s the creator of this design and it will give you an idea on how to assemble it. I’ve provided links to his videos that show this particular design: https://youtu.be/w2uf08xOPMI?si=yoJQOLVPmkOOp0MX https://youtu.be/jefuoy9P5UU?si=TOuQiU6UBFCShNRW
Assassins Creed hidden blade mechanical ubisoft
