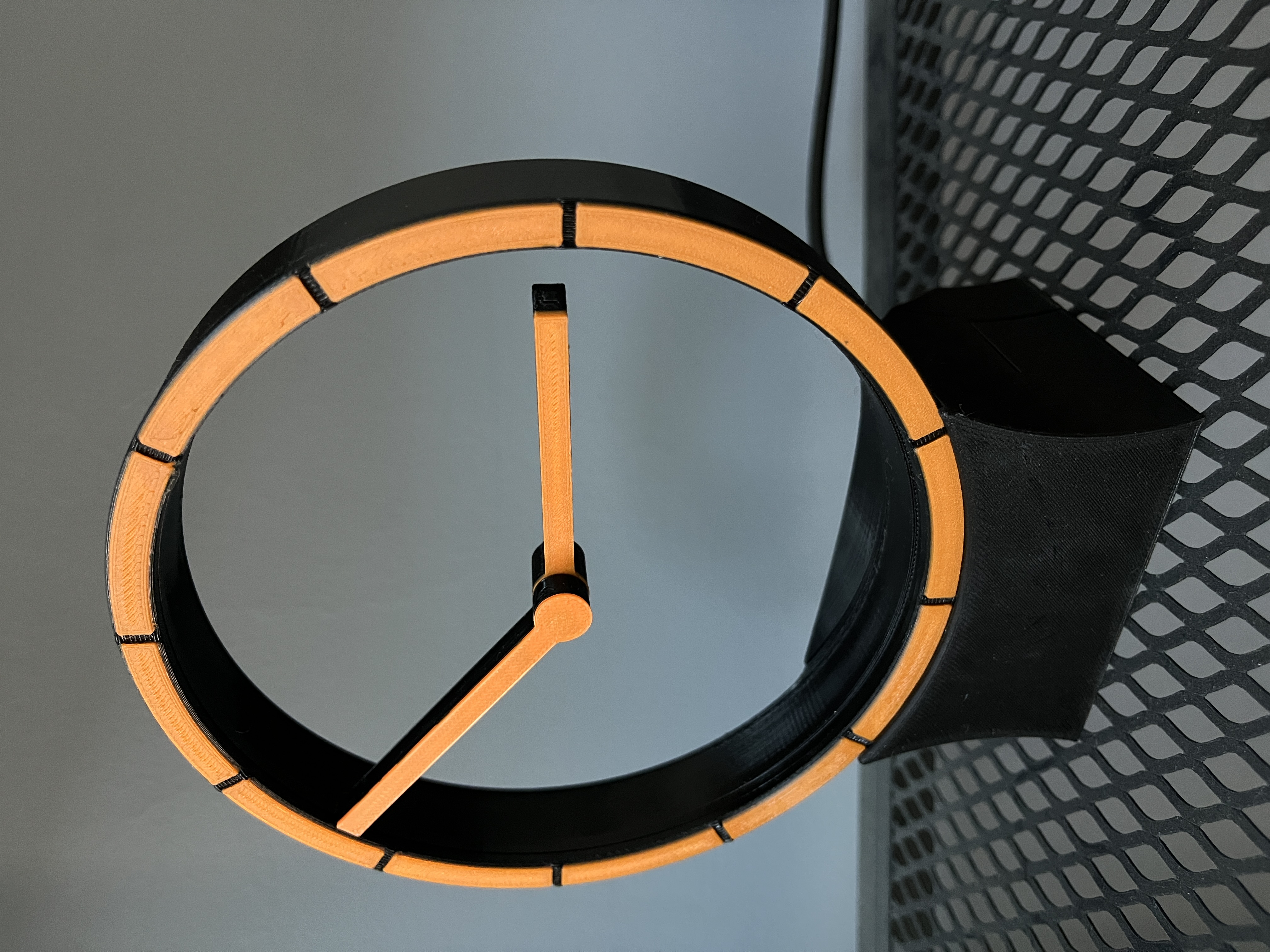

Hollow clock v5 - with Arduino Nano
by PrintForge... · via Printables
| Format | STL |
| Category | Electronics |
| License | CC BY-NC-SA |
| Triangles | 3.2k |
| Uploaded | Jul 14, 2025 |
⬇ 149 downloads
❤ 142 likes
👁 4.5k views
Description
This is the Hollow Clock V by Shiura, but it has been modified to use an Arduino Nano instead of the Seeed Studio XIAO ESP32C6. The assembly process remains the same as the original design by Shiura, with no supports required for printing. While the main base parts have been altered to accommodate the Arduino Nano, the clock mechanism and gears remain unchanged. The instruction on how to make the clock are here https://www.printables.com/model/901425-hollow-clock-v made by shiura. With the files to make the clock itself. It is also the same code used. (But may have to change the ports in the code to 2, 3, 4, 5) The arduino nano is soldiered onto the stepper motor driver facing upward.
