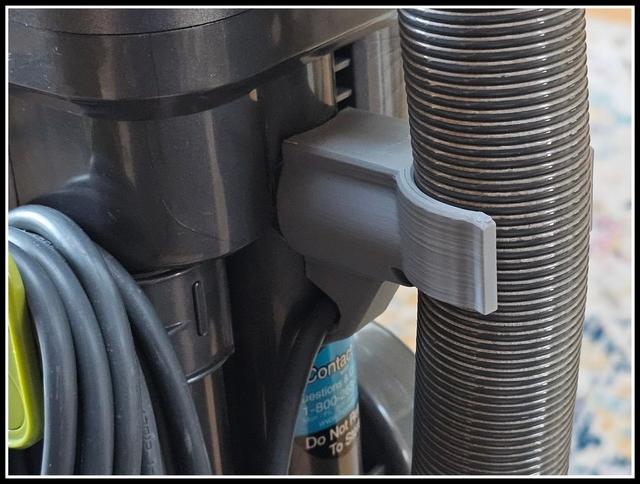

Hoover Clip for model UH72400 3D model thumbnail

Hoover Clip for model UH72400

by frostyfriday · via Thingiverse
Format3MF
CategoryOther
LicenseCC BY-NC
UploadedApr 17, 2026
⬇ 1 downloads 👁 3 views

Description

I have a 20 or so year old Hoover UH72400. I really like the thing. It has a great Hepa filer and is easy to take apart to empty. I like that it is simple and not overly large like so many products today have become. Alas the pipe clip broke a while back. As I was trying to learn FreeCAD, having always used Fusion 360, I though this was the perfect project. Here is the resultant new part. I think the clip may be part number 440004059 and I think it will fit a model UH72401, UH72409 and mine, the UH72400. I designed it such that it will print without supports in the orientation shown, but adding tree supports will not hurt. I used 5 outer layers and 15% infill. There is very little infill so the percentage doesn't really matter. Using 5 outer layers makes the pipe clip very strong when using Creality Hyper PLA. You need to use the screw that attached the original clamp to hold the new one in place. My new clamp holds the hose very well and I think it is stronger than the old part while still having reasonable flexibility to accept the hose. As always, if you end up using this part, please like it in order to encourage me to share more of my designs.
hoover vacuum
