HSW Magnet Holder

by Tarrant1701 · via Printables
FormatSTL
CategoryOrganisation
LicenseCC BY-NC
Triangles1.0k
UploadedDec 31, 2023
⬇ 59 downloads ❤ 27 likes 👁 503 views

Description

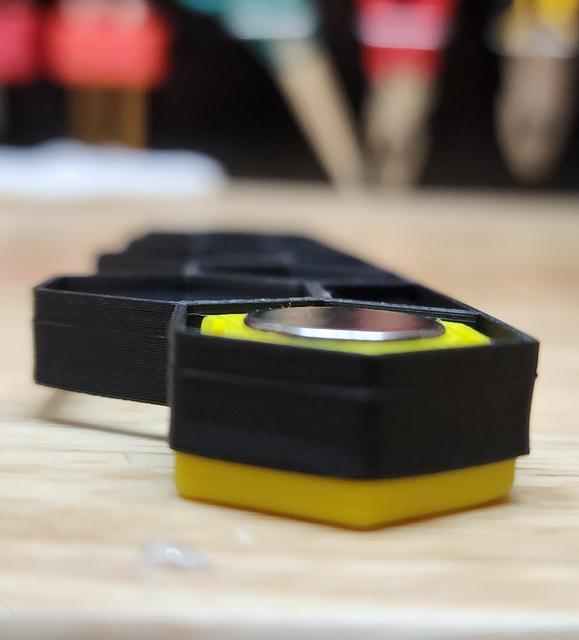

I wanted to use the strongest magnets given the constraints of the HSW system. I found these magnets (unfortunately they use imperial units): 9/16" dia. x 3/16" thickness grade N52 magnetic strength https://www.kjmagnetics.com/proddetail.asp?prod=D93-N52 Modified the insert to accomodate as above. This allows the magnet to sit flush with the honeycomb wall when mounted against the refrigerator panel. Allows for press-fit with tolerance. Hole on reverse side allows for pushing the magnet out should you wish to recover it.
magnet honeycomb hsw
