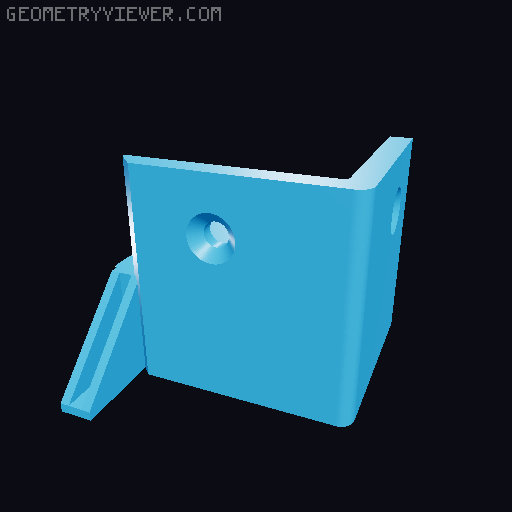

IKEA Lack enclosure (spool inside) 3D model thumbnail

IKEA Lack enclosure (spool inside)

by ivndbt · via Printables
FormatSTL
CategoryElectronics
LicenseCC BY-SA
Triangles2.9k
UploadedMar 18, 2025
⬇ 44 downloads ❤ 20 likes 👁 779 views

Description

I made this remix because I didn't want to unmount the spool from the printer. I need to make a lot of mod to my SV06, so I decided to keep the spool in place and not cut the filament every time I would have to remove the top of the enclosure (pretty often until now). Also, I didn't find the screws that Dominik Císař used, so I adapt all the holes to the ones I found. Hardware: n°12 flat-head wood screws 5x20mm n°20 flat-head wood screws 6x50mm *All the bigger screws are going to be placed inside the already drilled holes that you will find in the table's parts. The main idea is that I use another Lack's legs to build a higher top part of the enclosure. The connection is made with the extender parts. There are 3 different models of this extender because they have a seat for the plexiglass. Plexiglass panels: n°3 440 x 845mm thickness 3mm n°2 220 x 845mm thickness 3mm I have coupled this with my PSU holder for Sovol SV06 . For more precise mounting instructions check the original model . Here you can find all the mods I've made to my SV06.
ikea enclosure ikealack sovol sv06
