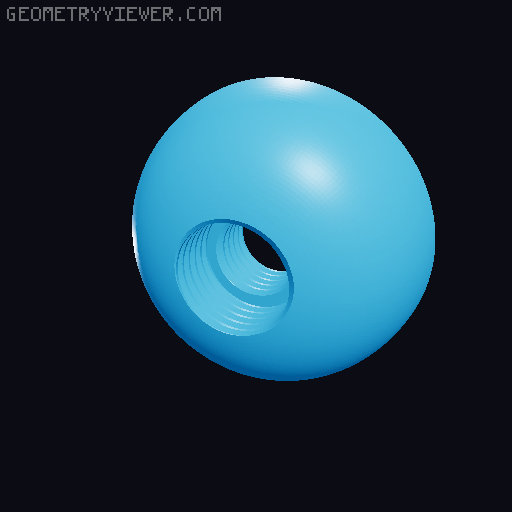

Ikea Platsa Enclosure Pass Through w Magnetic Connector

This model is a remix of the original “Join PTFE Tubes Together Magnetically” by Line Arc Line . The original magnetic PTFE joiner concept is excellent. I redesigned the housing to function as a panel pass-through solution for my IKEA PLATSA enclosure , while maintaining the magnetic quick-connect functionality. This version is designed to work with: PC4-M10 Male Straight Pneumatic PTFE Push Fittings (threaded) The fittings are screwed into the body, making the connection mechanically secure and perfectly aligned. 🧲 Magnets Designed for: 6 mm diameter 3 mm thickness Press-fit depending on printer tolerance. Use CA glue if needed. 🔩 Fittings Compatible with: PC4-M10 Male Straight Pneumatic Push Fittings Standard M10 thread The fittings are screwed directly into the printed body. 🖨 Recommended Print Settings Material: PETG (recommended for enclosure use) Layer height: 0.2 mm 3–4 perimeters 20–30 % infill Print without supports (depending on orientation) 🙏 Credits Full credit for the original magnetic PTFE joiner concept goes to Line Arc Line . This is an enclosure-focused remix adapted for threaded push fittings and panel mounting.
