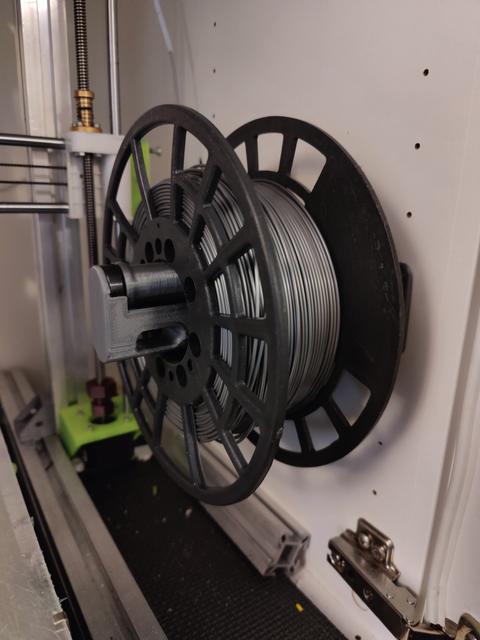

IKEA PLATSA mount for "filler" 3D model thumbnail

IKEA PLATSA mount for "filler"

by Jimmy Johansson · via Printables
FormatSTL
CategoryMechanical
LicenseCC BY-NC-SA
Triangles7.5k
UploadedFeb 22, 2024
⬇ 29 downloads ❤ 1 likes 👁 228 views

Description

Not much to say, I wanted the filler spool holder and I have my printer in a IKEA PLATSA with mounting holes 192x32mm (there are apparently two versions, the other has 200x25mm between the holes). I put some holes in the design so it would be easier to print and look like I didn't just make a block. It'll be strong enough for at least 1kg spools, probably bigger spools as well. Use fitting screws with countersunk heads. Not longer than the IKEA PLATSA is thick and around 4mm or something like that in diameter. I just grabbed some screws I had laying around. Make sure to place it high enough that you can put the spool past the printing bed. I prefer this design on the right side where it will be close to the door but you could put it on the left side as well and have the spool further in. Or I don't know, mirror it in the slicer and put it on the left.
spool ikea mount spoolholder platsa filler
