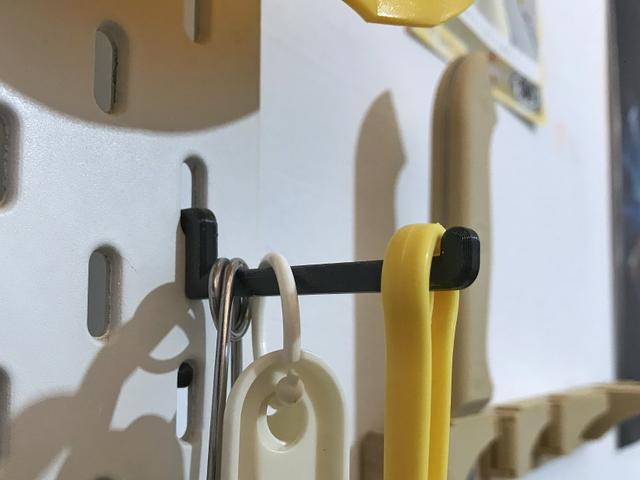

Ikea Skadis hook with better tolerances
by X · via Printables
| Format | STL |
| Category | Home |
| License | CC BY |
| Triangles | 938 |
| Uploaded | Jan 23, 2026 |
⬇ 18 downloads
❤ 3 likes
👁 43 views
Description
Improved version of the original design by Kilian. The standard tolerances were too tight for my setup, so I refined them and modified the shape for better durability and easier mounting. To detach/remove the hook, you need to press the pin in the bottom cutout and lift the hook up. Key Changes: Adjusted tolerances: Easier to install and remove. Reinforced shape: Added strength to prevent snapping. Improved design: Simplified attachment to the pegboard. Print Settings: Material: PETG (recommended), PLA, or ABS. Infill: 15%+ (I used Cross-hatch). Walls: 3 walls (or 2 walls if using a 0.5mm+ nozzle/line width). Surface: Only one wall on top for a cleaner look. Orientation: Print on the side for maximum hook strength. Note: I have tested lengths up to 50mm. If you go longer, please let me know how it performs. If you need a different size or have suggestions for improvement, feel free to contact me in the comments or via DMs.
Originally published on Printables
