Japanese Inspired Lamp
by Brendan Ogilvie · via Printables
| Format | STL |
| Category | Home |
| License | CC BY-NC-SA |
| Triangles | 70.0k |
| Uploaded | Oct 23, 2025 |
⬇ 14 downloads
❤ 11 likes
👁 178 views
Description

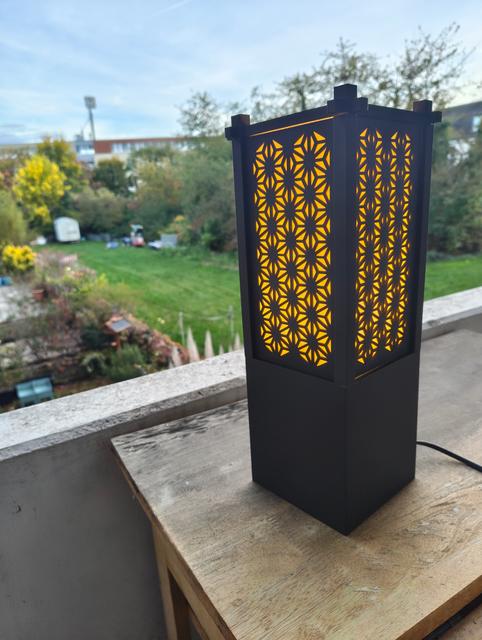

Simple Japanese inspired lamp, uses the paper lantern designs from @Wise_Man as the walls printed at 100mm*200mm*1.9 mm I just glued paper to the inside for an easy diffuser. Eventually I'm going to make some tweaks to the design including better fits between the corners and the walls so the walls can be more easily swapped for different designs but I don't currently have the time. Switch is a round 21mm toggle, I used these ones https://www.amazon.de/-/en/dp/B0C69HFMV8 Light socket is a 40mm threaded E27 socket, I had a spare one laying around but something like this should work https://www.amazon.de/-/en/Socket-Thermoplastic-Threaded-Attachment-Pluggable/dp/B07HRPT3RP/ref=sr_1_54?s=industrial&sr=1-54&xpid=h6kngupcOVfsF All magnets are 6mm*2mm round magnets Hole for the cable entrance is 6.5mm and takes a 10mm rubber grommet
Originally published on Printables
