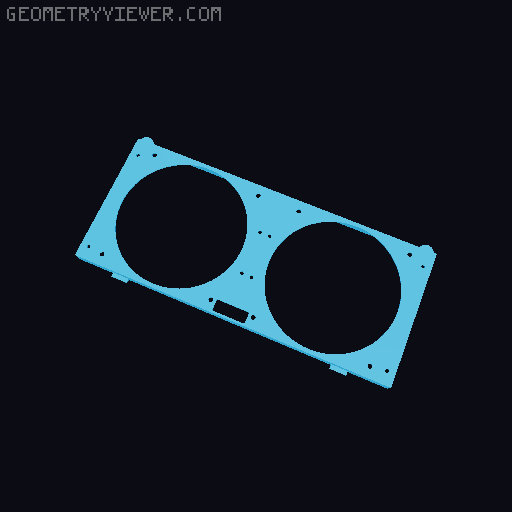

Jonsbo N6 Front 120mm Fan Mount

I create all my models in my free time. If you'd like to support my work, I would really appreciate a small donation. ☕ | | . ℹ️ This model allows the installation of 2x 120 mm fans while retaining the original front cover. 🖇️ Features supports two standard 120 x 25 mm PC fans retain of the original front cover easy attachment using magnets cable routing on top or bottom (preferred) supports antivibration pads, fan distance spacer and nylon dust mesh filter in depth ✅ Compatibility Jonsbo N6 NAS case 2x 120 x 25 mm fans (like Noctua NF-A12x25) please see Measurements section ⚙️ Print settings No special printing settings required - use standards. 3mf file provided in the files. nozzle: 0,4 mm layer height: 0,2 mm supports: optional brim: optional, mouse ears material: PETG over PLA 🔩 Required Tools soldering iron 14x M3 threaded insert (6 mm) 14x M3 bolt (6 to 10 mm) 8x fan screw 14x 10x2 mm magnet (neodymium) 🪛 Instructions thread inserts by soldering iron (180°C temp, angle of 90°) immediately after inserting the thread (not too deep), press down with a flat metallic object to obtain a even surface use the magnets in 4 stacks and check proper polarity beforehand! 📐 Measurements to guarantee snug attach- and detachment of the original front cover and exploit the maximum height of construction stack, please find the table as reference | Distance (mm) | | Component | |------------------: |--- |------------------------ | | ~1.0 | | Screw Head | | 1,0 | | M5x1,0 Acrylic Washer | | 1,7 | | Nylon Dust Mesh Filter | | 2,5 | | Fan Distance Spacer | | 25,0 | | Fan 120x25 | | ~1,0 | | Anti-Vibration Pad | | 32,2 | | Total |
