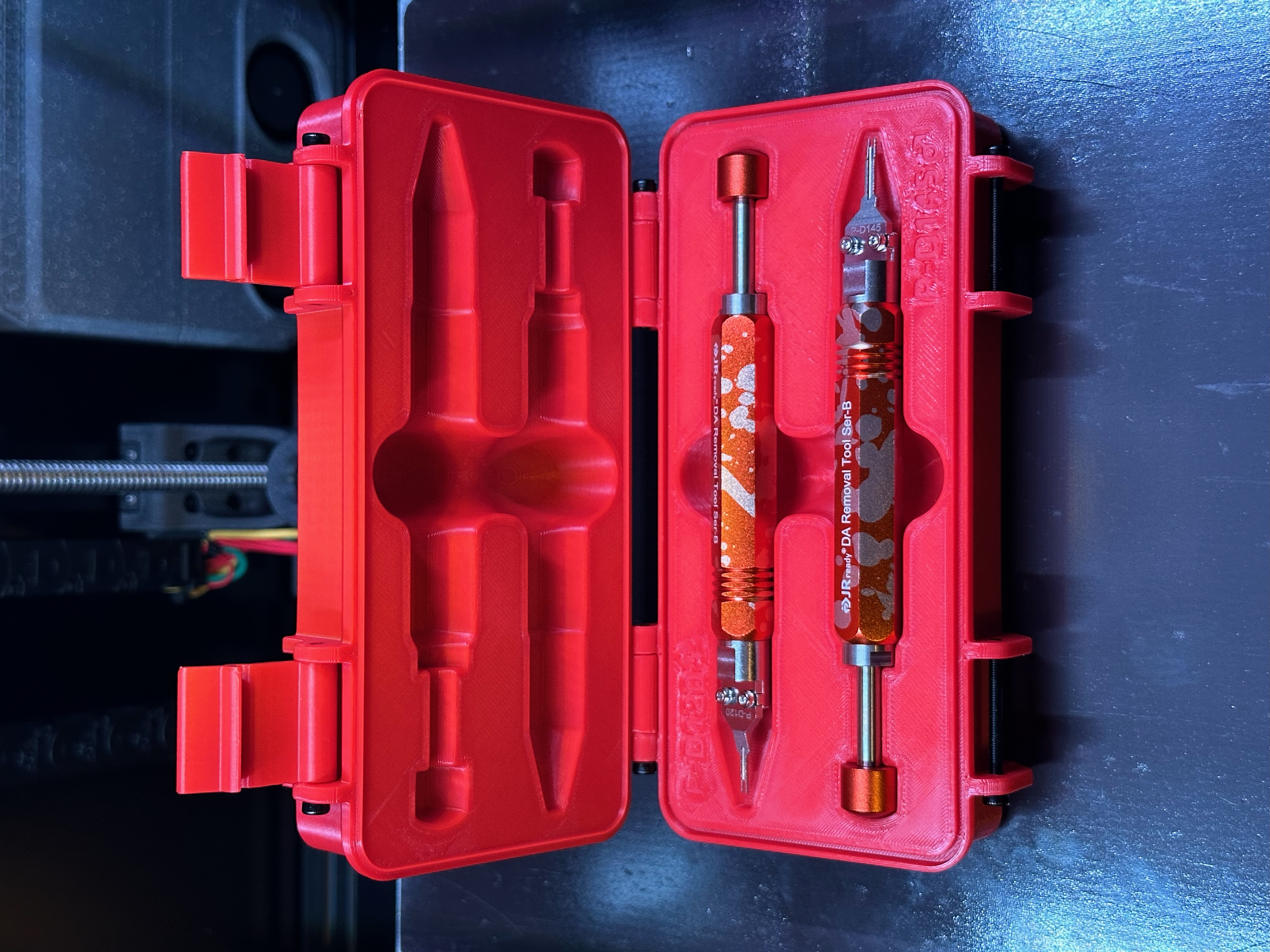

JRready ST5262 Molex Extractor Case 3D model thumbnail

JRready ST5262 Molex Extractor Case

by kyleisah · via Printables
FormatSTL
CategoryTools
LicenseCC BY-NC-SA
Triangles196.0k
UploadedNov 26, 2023
⬇ 82 downloads ❤ 23 likes 👁 697 views

Description

Recently I found out about these tools for removing microfit pins from their housings and they're the best dang extractor tools I've ever used, and deserve a nice case to house and protect them. I remixed the amazing rugged box by Whity to hold these nice and safely. I also added a .2mm first layer bridged section in the top that reads “MLX MFT3.0” in case you have other boxes of similar size and needed it to be labeled. The pockets are also labeled for tip type and corresponding pin gender. All parts in the STL are already oriented and ready to go. If you need to separate them to print on smaller machines or for multiple colors, just use the “Split to Objects” function in your slicer. The ejector tools can be found here: https://a.co/d/hP7ULVc The hinges and latches require 6 M3x30 screws for assembly.
extractor molex ejector microfit depinner d120 d145 jrready
