K1 Max 270° Door Hinges (remixed)

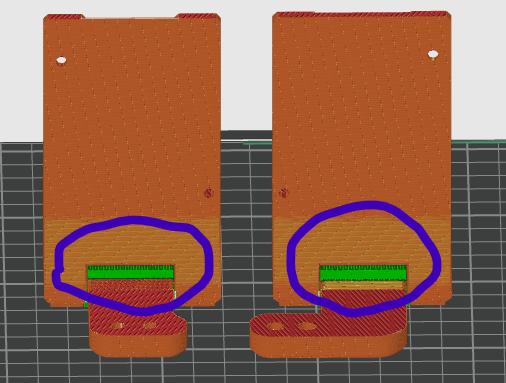

I remixed the original version of @RIBsfit's design to correct most of issues that reported by @Mordiev. 2 M3x8mm and 2 M3x16mm screws are still needed to tight the hinges to into the frame. The backplate is not neededed but 4 M3 x H6mm x OD5mm heat inserts are still needed. They will be inserted to the door-side hinge part. Thickness of the door-side hinge part has increased to not need a separated spacer. Paint-support in orca-slicer was used to add support btw the frame hinge part and door-side hinge part. Lastly, I don't open the door completely 270 degrees due to small space, so I did not test or use the door latch, but I think that it should still work with the door latch. Updates: Added 2 small parts (1.5mm thick) to print with TPU as pads between glass-door and door-side hinge part in case someone need them. Happy printing!
