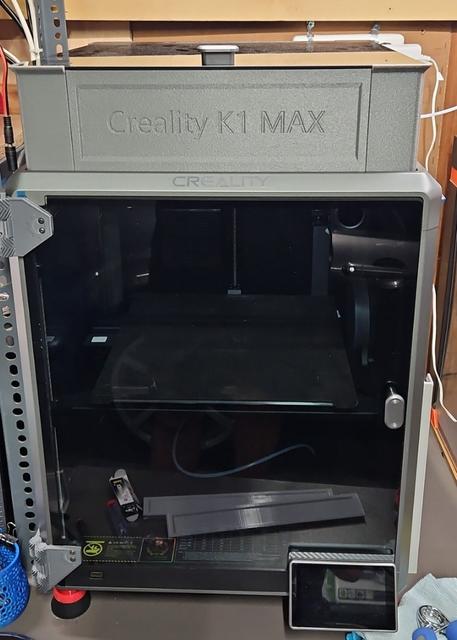

K1 max riser (tall) + BTT Smart Filament Sensor v2

I did a remix of two great designs to create a taller riser because my ptfe was rubbing on the glass after installing the cyclops extruder. You can print 4 corners without the holes if you are using the stock filament sensor. The text is written directly in the slicer through the “Emboss” tool. For the printed model I used “fuzzy skin” (0,2mm distance+thickness) to cover VFA. Wirring: runout sensor on original sensor plug motion sensor on pa10 pin on the toolhead Changes in printer cfg: [filament_switch_sensor filament_sensor] pause_on_runout: True switch_pin: PC15 runout_gcode: {% if printer.extruder.can_extrude|lower == 'true' %} G91 G0 E30 F600 G90 {% endif %} [filament_motion_sensor encoder_sensor] switch_pin: nozzle_mcu:PA10 detection_length: 20 extruder: extruder pause_on_runout: True runout_gcode: {% if printer.extruder.can_extrude|lower == 'true' %} G91 G0 E30 F600 G90 {% endif %} event_delay: 5.0
