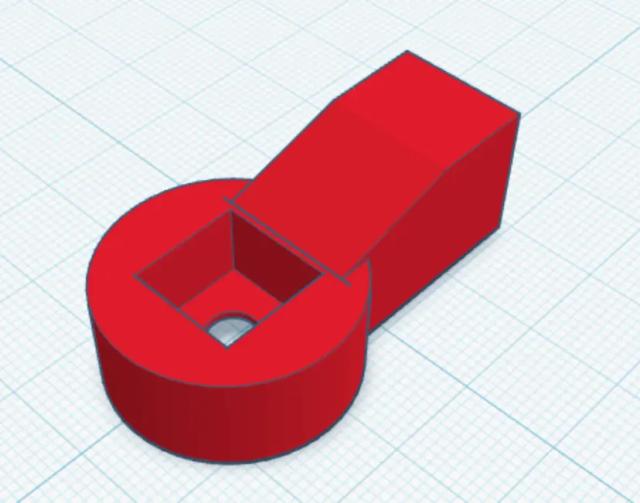

Kenko Equatorial Mount Clutch Lever Repair
by earthscience · via Thingiverse
| Format | STL |
| Category | Mechanical |
| License | CC BY-SA |
| Triangles | 584 |
| Uploaded | Apr 17, 2026 |
⬇ 2 downloads
👁 7 views
Description
📌 Overview The clutch lever on my Kenko equatorial mount broke during a solar observation session with students. Since replacement parts are not available, I designed a simple and durable version using 3D printing. 🛠️ Design Highlights Simplified internal structure Reinforced for durability (plastic limitations considered) Flat base for better print quality Tight friction fit 🖨️ Print Info PLA recommended No supports needed Easy and fast print 🔗 Full Story & Details 👉 I documented the full repair process, design reasoning, and photos here: 👉 https://earthscience.kr/post/254
