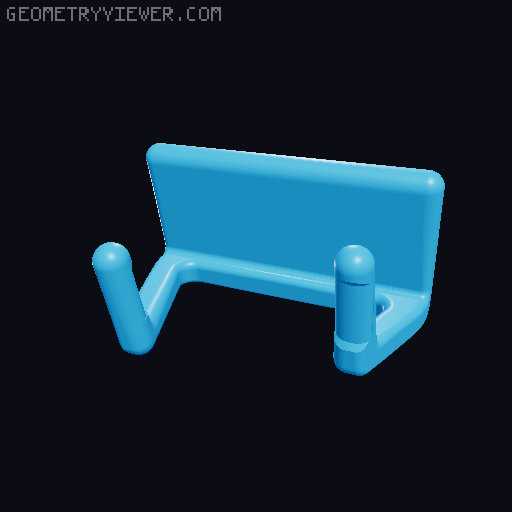

Kitchen Utensil holder with anti-slide-off grooves 3D model thumbnail

Kitchen Utensil holder with anti-slide-off grooves

by lord_henry · via Printables
FormatSTL
CategoryHome
LicenseCC BY-NC-SA
Triangles51.2k
UploadedJan 19, 2024
⬇ 212 downloads ❤ 50 likes 👁 913 views

Description

According to a user's request from the comments, I made three size version (the photo shows the “large_spoon_size_kitchen_utensil_holder_with_anti-sliding_grooves_64mm_between_posts_center”-size. There are also versions with “flatter_bottom” at the end of the filename now. They are easier to print since the first few layers had a steep overhang. I prefer a little less curvy than a bad print. My printer could not handle the steep overhangs of the rounded model - maybe yours can! It might be a good idea to fill the model with something to give it some weight (infill, plaster, …) for better handling. I also put some self-adhering rubber feet on the bottom for better grip This is a remix from : https://www.printables.com/model/719988-utensil-holder My print settings for a hopefully long lasting part: PETG to have better temperature resistance with 4 vertical perimeters and 1.6 mm horizontal shell thickness. First layer 0.28 mm, others 0.2 mm. Only on the two main beams I use a 50% grid infill via added modifier in PrusaSlicer. For the rest I use 0% infill (yes, zero) because of the good strength with the vertical perimeters.
kitchen tool holder
