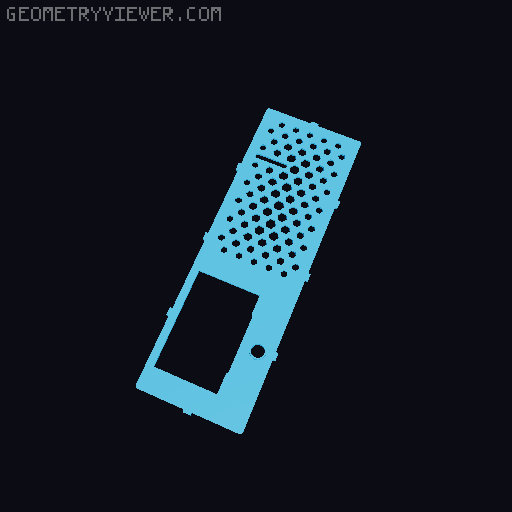

Klipper Case

Case for Raspberry Pi 5 + Pimoroni NVME Base + pushbutton+ 2.42 OLED + Rotary Encoder. addons: knob for 6mm shaft encoder adapter for 8.5 mm square momentary pushbutton with 6x7mm knob from aliexpress (Non-Self-Locking Switch 8.5X8.5MM) Raspberry pi 5. Pimoroni NVME Base (https://shop.pimoroni.com/products/nvme-base?variant=41219587178579) Aliexpress: 2.42 OLED 128x64 display I2C ( “2.42 Inch 128x64 OLED LCD Display Module SSD1309 12864 4 Pin IIC I2C ” ) EC11 Rotary encoder. (KY-040 ) 16mm Momentary Push Button w. LED. ("16mm Metal Push Button Switch" ) Please Note: I use active raspberry pi cooler (https://www.raspberrypi.com/products/active-cooler/) There is no external access to the MicroSD card reader on the Pi - I don't use it. The lid is only fastened using gravity and possibly friction of the 8 tabs - I prefer the easy access. Caution: Use a short 16mm pushbutton. The nvme PCB only leaves 9mm space for it inside the case. (or use the adapter with a glued in 8.5mm square switch). FWIW, Here's my novice OnShape 3D design . In case you want modify something. ****************************************************************************** I watched this video on how to connect the OLED, Encoder and powerswitch to the Pi
