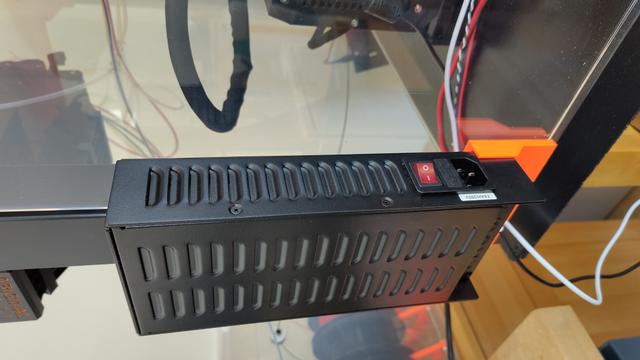

Lack enclosure left side Prusa PSU mount 3D model thumbnail

Lack enclosure left side Prusa PSU mount

by vben · via Printables
FormatSTL
CategoryArt
LicenseCC BY-NC-SA
Triangles1.5k
UploadedFeb 18, 2024
⬇ 58 downloads ❤ 20 likes 👁 601 views

Description

Left rear bottom corner replacement for the https://www.printables.com/model/3673-prusa-enclosure-v2-mmu2s to mount the PSU on the outside of the enclosure. The mounting on the left side has the advantage that you don't need to modify any of the cables. The mains cable and the power switch can be reached from the front quite easy. Print instructions Just follow the original instruction Print one corner and two brackets Build instructions Neede Hardware 2x M3 heatset inserts 2x 5x20 panhead screws Assembly The best way is to follow the original Instructions for the enclosure For the PSU just read the PRUSA original manual carefully Disconnect the PSU Remove the wires from the Printer frame Remove the PSU from the printer Add a stabilizer to the printer frame instead of the PSU Mount the PSU to the corner Mount the PSU to the two brackets and fix the brackets to the leg
ikea ikealack mmu2s prusai3mk3 psumount mmu3 enclosuremodification enclosureparts
