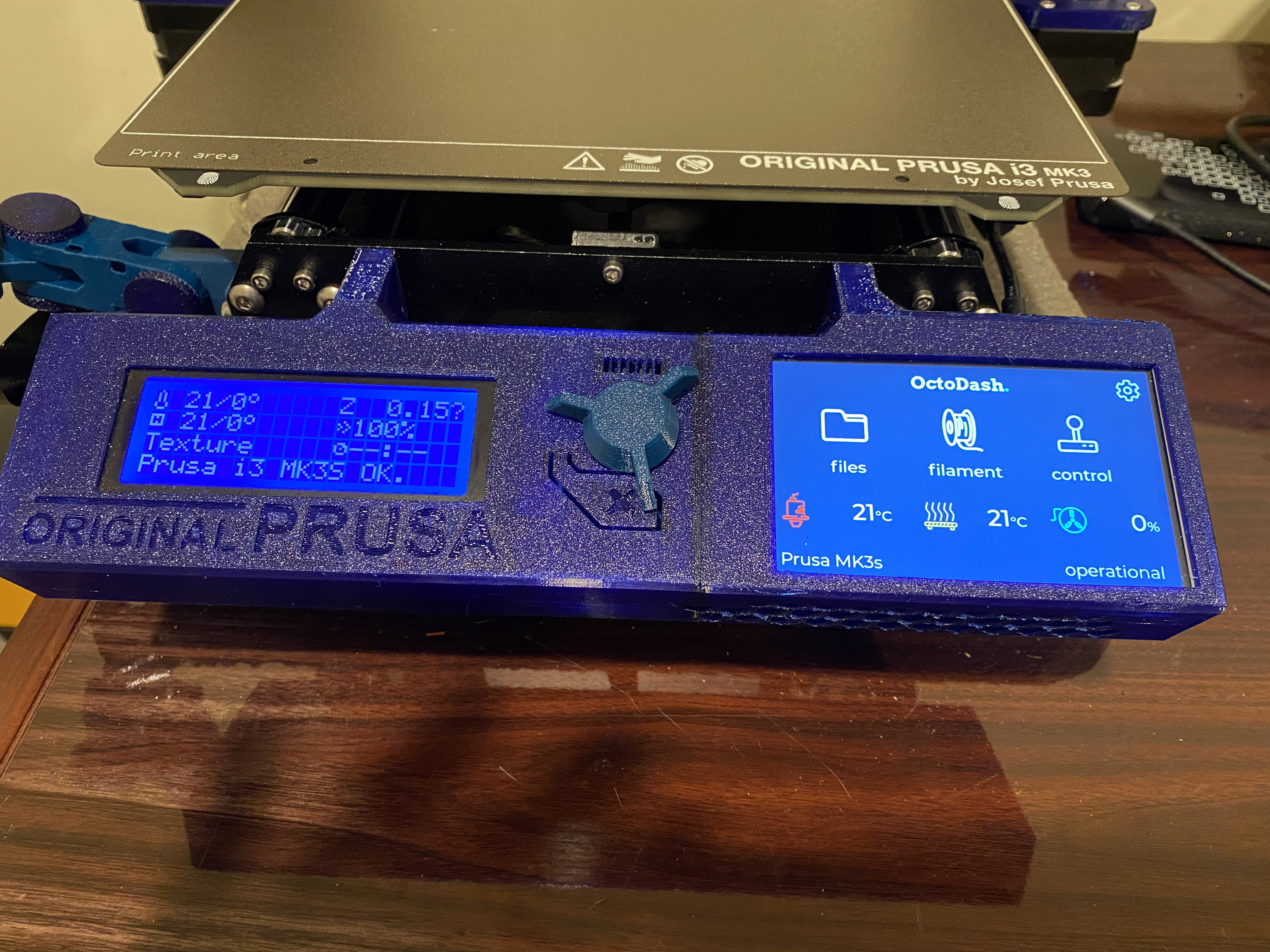

LCD + 4" Non-HyperPixel Touchscreen Cover 3D model thumbnail

LCD + 4" Non-HyperPixel Touchscreen Cover

by Max DeAngelis · via Printables
FormatSTL
CategoryArt
LicensePublic Domain (CC0)
Triangles5.9k
UploadedMar 9, 2021
⬇ 110 downloads ❤ 26 likes 👁 1.9k views

Description

The model from Puckpuck is awesome but I needed a little more room to allow space for the little U-shaped jumper that connects the HDMI port from the touch screen to the Raspberry PI 4 I was using. Because of the increased size of the screen and the repositioning of the PI the entire cover length was increased by 10mm. I ended up having to cut the model in half to be able to print on my Prusa MK3s. I made some 1.75mm holes where you glue together the two side to make lining up easier. Parts list: Screen - I had a hard time finding a HyperPixel so I opted for this cheaper version https://www.amazon.com/gp/product/B08M62BBBL/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1 PI 4 - Probably could get away with a PI 3 but I wanted to try out a 4 😃 https://www.amazon.com/gp/product/B07TC2BK1X Power adapter with switch - After a lot of searching for a nice 90-degree wire to connect with a buck converter, I opted for a switched wire. It is honestly really nice and pretty cleanly hidden. https://www.amazon.com/gp/product/B08C9VYLLK/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1
octopi prusamk3s

Originally published on Printables
