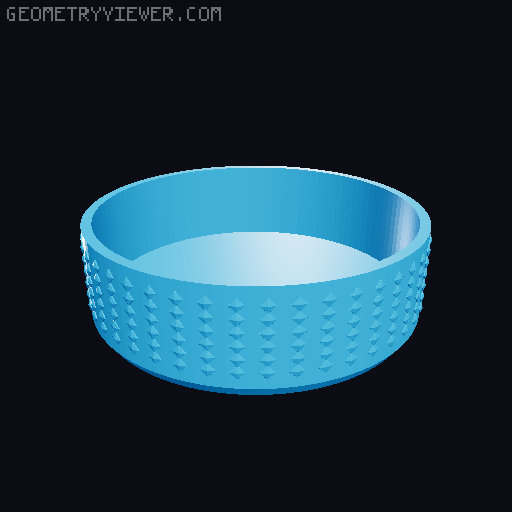

Lens Cap for Pentax 15mm f/3.5 Ultra-Wide Angle 3D model thumbnail

Lens Cap for Pentax 15mm f/3.5 Ultra-Wide Angle

by 069shit · via Thingiverse
FormatSTL
CategoryOther
LicenseCC BY-NC-SA
UploadedMar 25, 2026
⬇ 8 downloads 👁 18 views

Description

This is a lens cap designed specifically for the SMC Pentax 15mm f/3.5 Ultra-Wide Angle. Since original metal caps are rare and expensive, and standard "snap-on" caps can easily scratch the finish of the metal flower hood, this model was developed to provide a secure "suction fit" using a soft neoprene lining. Key Features: Precision Suction Fit: Designed with an internal diameter of 82.2mm, perfectly calculated to host a 1mm thick neoprene strip. This creates a soft, scratch-free, yet incredibly firm grip on the 80mm lens hood. Integrated Neoprene Recess: The interior features a 14mm wide recessed track. This prevents the adhesive neoprene tape from peeling or shifting when sliding the cap on and off. More grip: The exterior boasts a classic diamond pyramid relief. Heavy-Duty Protection: With a 4mm thick bottom and a 2.5mm base wall, this cap offers serious protection for the protruding, bulbous front element of the 15mm lens. NOTE: You´ll need 1mm thick and 10mm wide Neoprene Tape (or something simmilar) for the main model. UPDATE: Without Neoprene - I have also uploaded an alternative print file (Lenscap Pentax 15mm f3-5 NO NEOPRENE recess 80-2mm dia v1-0) with a smaller inner diameter (80.2 mm) and without the recess for the neoprene. This should also work when printed with TPU (or possibly PLA). However, I would like to explicitly point out that I have not tested this version and am simply making it available in case anyone does not want to or cannot use neoprene tape.
15mm 80mm lens cap Pentax SMC wide angle
