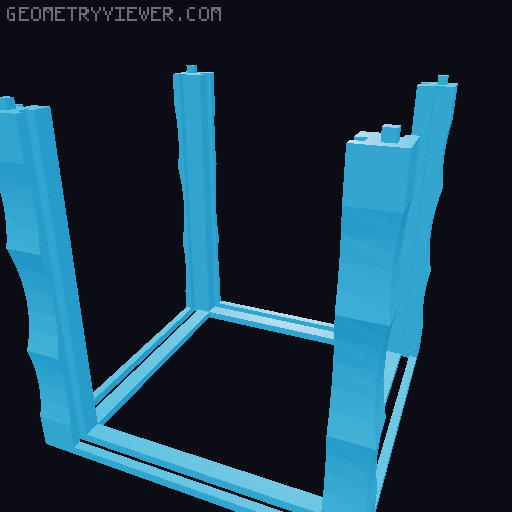

Lithopane Lamp E27

I have remixed this beautiful lamp to have a larger hole (D=41mm) for standard E27 mounts and have also added 25mm to the height to allow space for even the largest E27 bulbs. The lithopane size needs to be adjusted to 115x90mm (height x width) if using my frame. You can also use the original if you prefer and your bulbs are small enough. However, I really like the little larger in height than width look. Lamp printing General: make sure to hide your seams on the lamps inside, makes for a nicer outside look :) Base: Printed upside down, with the feet facing up. Needs support around the hole in the middle. If your printer is not the best bridger maybe also some support in between hole and edges. (NOT exactly up to the edge! Makes removing support nasty. I recommend leaving at least a small gap to the edge.) Frame: Maybe an outside brim if you have problems with the prints lifting off the bed. Roof: No support, just print :) Lithopane printing Print the litho using a brim and upright facing along the y-axis if using a bed-slinger printer. I.e. if you look at the printer from the front you see only the small edges of the litho. The lithopane settings I used on https://lithophanemaker.com/Framed%20Lithophane.html were: 📷 Image redacted — claim this model to add your own media
