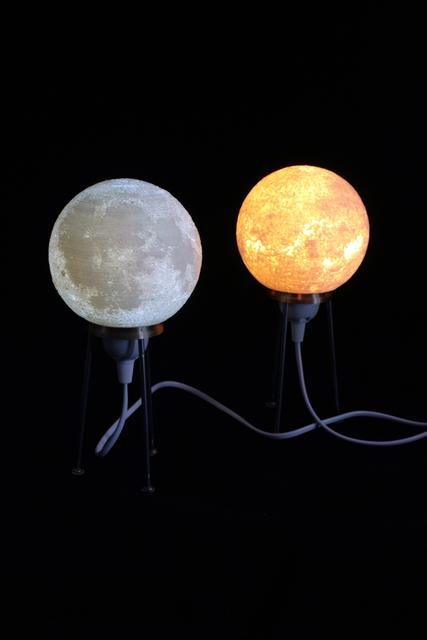

Lithophane Solar System (E27)

These models are remixed from Frank Dreschner's “Designer Lithophane Moon Lamp” [1], and raTmoles' lithophane solar system [2]. I extracted the bajonet adapter from Dreschner's original model and fitted it to the respective 3D model. Globes have a diameter of ca. 120 mm, which makes them quick to print and impressive enough for a birthday present. For the lamp stand I printed the uploaded model and inserted 13 cm (⌀ 4.6 mm) iron nails as legs (tip-first). If you use cyanoacrylate glue, these legs are much more sturdy then the original ones. Also, the mix of materials provides a high-quality look to the whole assembly. The globes are printed best at 0.2mm resolution with 4 margins, at 100% infill. No supports needed. The socket adapter is printed at the same settings, but with 10-15% infill. Tip : Put a diffuser over the lamp. I simply used painted transparent paper. If you use 2-4W LEDs, it looks really impressive. Note I'll add more models when I've got more time. I tried: Moon Sun Jupiter Mars Venus Details (Globes) General Diameter11-12 cmPrinting Times8-14 h Print Settings FilamentFormFutura ReForm rPLA (white)PrinterPrusa Mini +SlicerPrusaSlicer 2.4.0Preset0.2 mm QUALITYInfill100 %Margins4Supportsnone Sources [1] https://www.prusaprinters.org/prints/23859-designer-lithophane-moon-lamp [2] https://github.com/ratmole/3dSolarLithophane Edits 27.03.2022: Added adapter, Moon, and Sun. 28.03.2022: Added Mars, Venus, and Jupiter. Corrected Moon-model (.stl).
