Little Cube Guy - with LED eyes

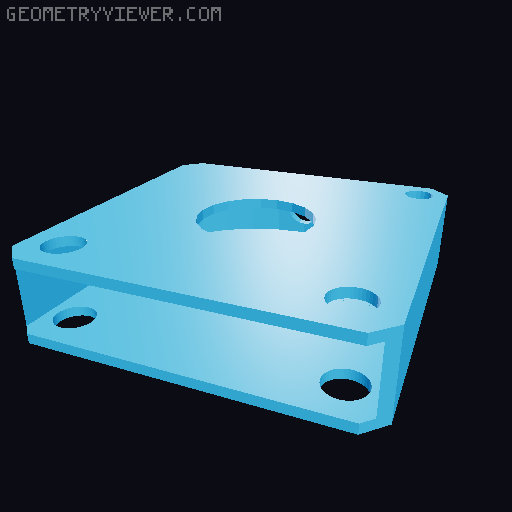

concept - not fully tested First off all, this is the original: https://www.printables.com/model/688242-little-cube-guy This model is an inlay. When the model is revealed, the electronics are inside the cube. While the little guy is hiding, the electronic parts are stored in a box attached to the original cube. You need additional parts: 3× M2 screws and nuts 2× 5mm Led 2× resistors 1× Cr1630 some wire to connect everything The body is the same as the original, accept the holes where the eyes are placed, and holes for two nuts. The instructions for printing can be found with the original model, which is linked above. For the inlay I recommend PETG. The parts are scaled but not adapted to shrinking and the switch needs some try and error before it fits in the case. In theory the model should work with a 0.4 nozzle, but because of it smal size, I would recommend a smaller one. The nuts are designed to attach them while printing. You need to adapt the needed resistors to your used LEDs. For standard white, blue and green, 50ohm should fit. For red and yellow more would be needed. There should fit two compartments for batteries. Please contact me with any questions and ideas for this concept. I will test the parts in the next weeks and add and modify what I will find. Have fun printing
