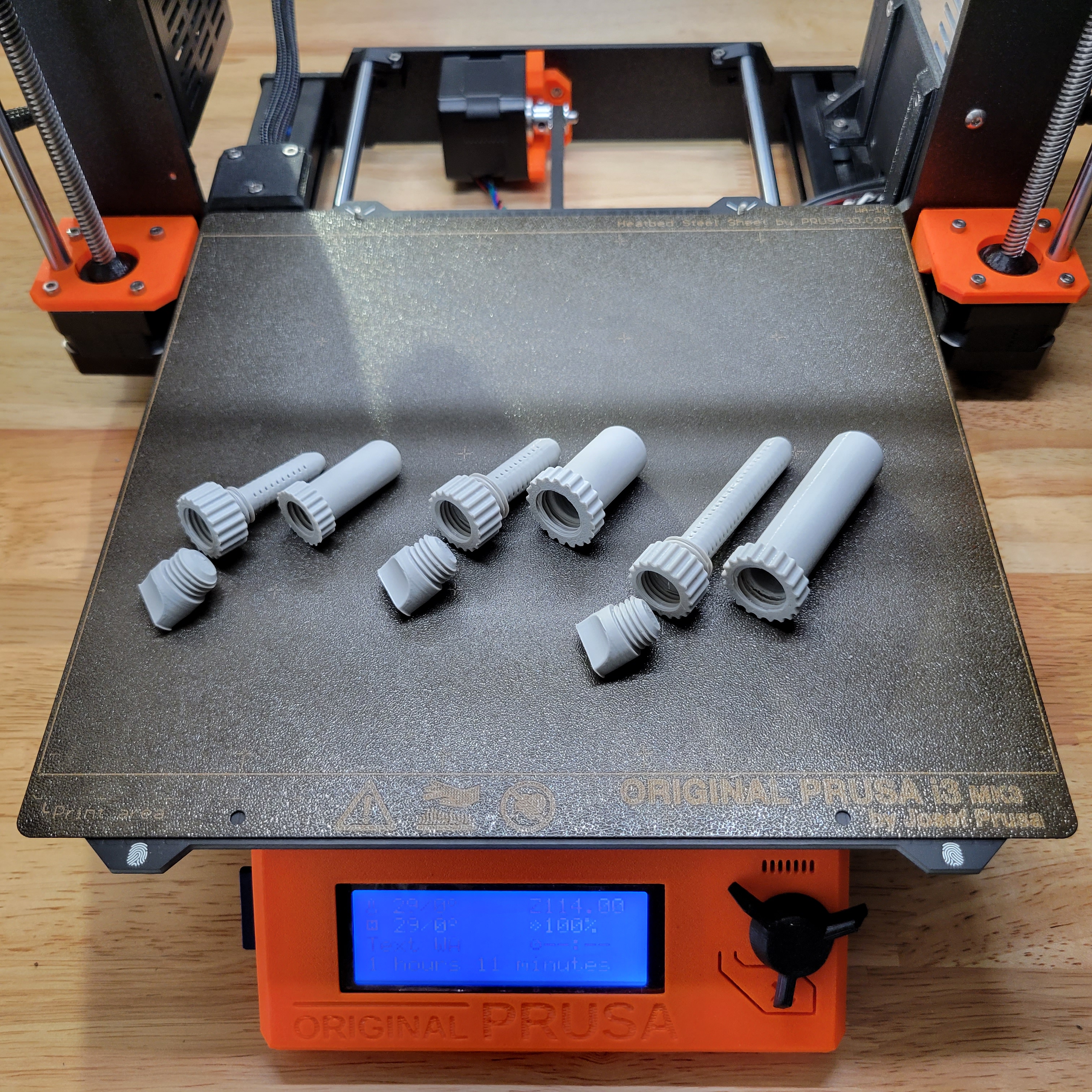

LM10UU, LONG LM10UU (MK4 Z Rod Bearing), & LONG LM10UU CAP
by Kevin · via Printables
| Format | STL |
| Category | Mechanical |
| License | CC BY-NC |
| Triangles | 359.4k |
| Uploaded | Jun 24, 2023 |
⬇ 248 downloads
❤ 34 likes
👁 1.1k views
Description
Please try the original authors version before trying the altered version. I had a little trouble with the original 10mm diameter being a little too big, so I used some of the new features in PrusaSlicer 2.6.0 to change it up a little. First, I cut it just above the threads for the cap (using the “Parts” checkbox and not “Objects”), because I didn't want to alter the threads for screwing it onto the SuperLube or the dust cap, and then scaled down the top part in X and Y to 95%. Next, I used the measurement tool to verify that the dimensions were what I wanted. Then I sliced and printed it (textured plate) using 0.20mm Quality for MK3S+ adding a 4mm brim with a 0.24 gap and bumping perimeters to 4. An hour later I had a well fitting nozzle. Knowing that I had a working lubricating tip I did a couple more cuts, a copy/paste, a z move up, and voila I now had an extended version that would allow me to properly lubricate my MK4 z rod bearings. Honestly, it took me longer to write this than it did for me to do all the different operations in PrusaSlicer 2.6.0 . Really liking all the new features they've added.
