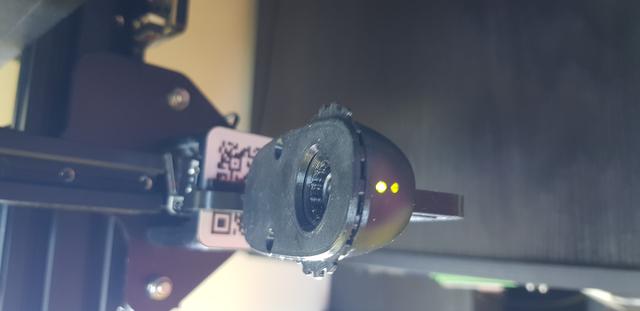

Logitech C270 slim focus wheel - reworked 3D model thumbnail

Logitech C270 slim focus wheel - reworked

by James · via Printables
FormatSTL
CategoryOther
LicenseCC BY-NC-SA
Triangles3.7k
UploadedMay 24, 2024
⬇ 62 downloads ❤ 8 likes 👁 343 views

Description

I love the original slimline cover this is remixed from. But I had problems with the focus wheel engaging with my cameras focus ring positively. To begin with I tried scaling the original model in just the Z axis but it was still a bit iffy. I think these cameras are all slightly different due to manufacturing, and obviously the amount of focus dialed in or out changes the depth of the ring ever so slightly. I redid it from scratch in fusion360, with slightly chunkier grips for my sausage fingers. The cover and wheel obscure the led so I drilled 2off 1.75mm dia holes in line with the smd LED, bent and glued some clear filament to act as light pipes.
wheel c270 logitechc270 focus
