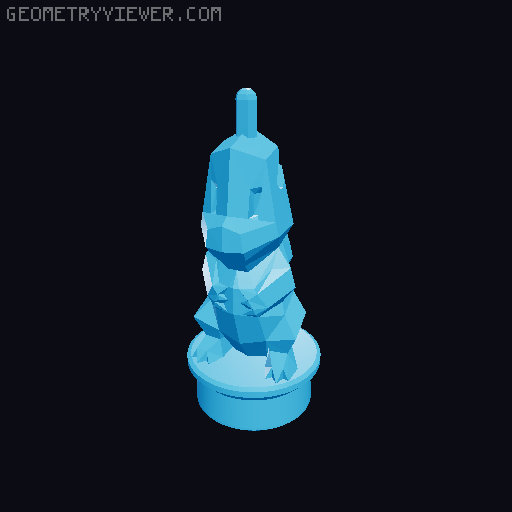

Low Poly Pokémon Chess Set
by DARK · via Printables
| Format | STL |
| Category | Other |
| License | CC BY-NC-SA |
| Triangles | 10.4k |
| Uploaded | May 17, 2023 |
⬇ 1.3k downloads
❤ 471 likes
👁 10.9k views
Description
I wanted a sturdy Pokemon chess set (birthday present for 8 year olds) that ressembles a traditional one as close as possible. I uploaded two versions: All files that start with an underscore "_" contain each figure as a whole. All files starting with "NUTs_M5" contain figures and base parts that hold standard M5 nuts and should be used if you wanted to produce weighted pieces that do not fall over as easily. I printed the bases at 50% infill and the podest/figures with 15% infill. If your printer is not as perfectly dialed in like my Prusa :), you could either to scale the pieces 2-dimensionally in X and Y or adjust the XY Compensation Settings in Prusa Slic3er for a snug fit of the nuts.... The knight (Mudkip) is the only piece that needs supports enabled. Print Settings Supports: No (except on the knight/Mudkip) Resolution: 0.2 Infill: 15% (figures) and 50% (base) Notes: All files except the knight/mudkip print without supports. Post-Printing: For a weighted chess set 2 x M5 nuts can be added into the cavities and then the base and figures can be glued (for PLA standard white wood glue works perfectly)
