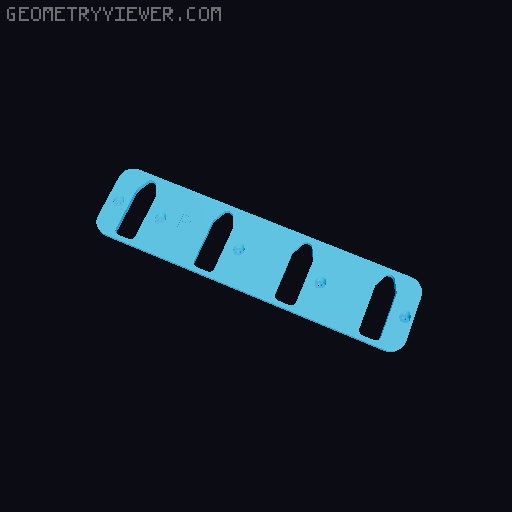

LS cathedral port intake flange 3D model thumbnail

LS cathedral port intake flange

by Profat46 · via Thingiverse
FormatSTL
CategoryMechanical
LicenseCC BY-SA
Triangles2.0k
UploadedMar 10, 2026
⬇ 26 downloads ❤ 1 likes 👁 46 views
⬇ Download STL 👁 View Details

Description

4 LS cathedral port intake flanges, they are marked D and P for passenger or driver side, i have printed one to confirm fitment, there's 2 pairs. one pair with raised bosses for bolt mounting, one pair for recessed bolt mounting scale: they should be to size but if they arent, 424mm wide on the flats and 100mm tall on the flats perfect for intake designing and mockup please remake/ add and show off your intakes! thanks for looking!
chevy engine intake Intake Manifold v8 engine

Originally published on Thingiverse
