Lynton & Barnstaple Standard Gauge Open Wagon OO Scale
by AlMackie · via Thingiverse
| Format | STL |
| Category | Mechanical |
| License | CC BY-SA |
| Triangles | 56.2k |
| Uploaded | Apr 23, 2026 |
⬇ 4 downloads
👁 10 views
Description

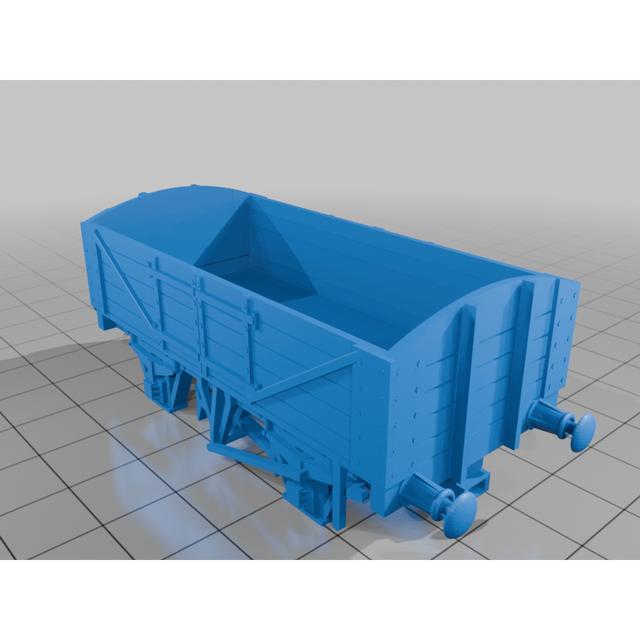

This is a OO scale re-creation of the L&B open wagons from Thomas and Friends Season 2. These were the 'old trucks' which Diesel couldn't move, the trucks which Edward took to the scrap yard when he met Trevor, amongst other appearances. In the show, they have low buffer beams and are obviously not-quite-right. In this interpretation, I have put them on a standard wagon chassis, capturing the silhouette whilst allowing them to interface with other OO scale wagons and stock. Suitable for Hornby / Bachmann 12.6mm standard wagon wheels and axles. Comes with a NEM pocket at the standard height and distance to the buffer beam. Depending on your printer, it may require a little further drilling of the axleboxes for your wheel axle set. I printed in ABS-Like resin, which worked well straight out of the printer. If you do need to drill a little more, use a 2.5mm drill bit.
Originally published on Thingiverse
