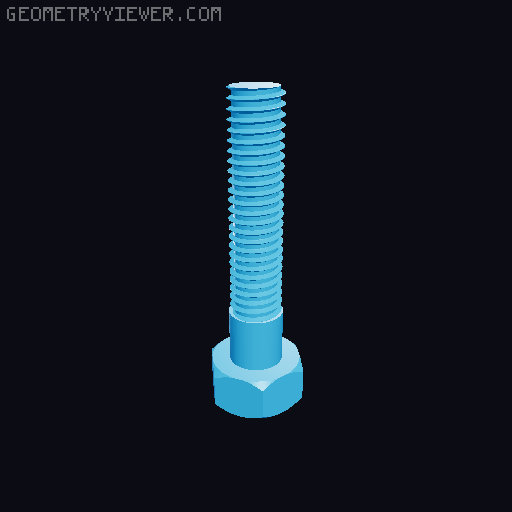

M6 1.0mm nut and bolt (15-30mm) 3D model thumbnail

M6 1.0mm nut and bolt (15-30mm)

by takarocks · via Printables
FormatSTL
CategoryArt
LicenseCC BY-NC-SA
Triangles66.2k
UploadedMar 3, 2024
⬇ 4.5k downloads ❤ 222 likes 👁 9.7k views

Description

I really appreciate you if you can consider a coffee for me if you like the design! June 25, 2023 Update : Added regular tolerance and tight tolerance M6-1.0mm nut I do not have M6 bolts or nuts when needed, decided to create myself. I expanded this project to support multiple length as needed for other purpose. Nut M6-1.0mm nut (tight) M6-1.0mm nut (regular) [June 25, 2023 addition] Hex Bolt Full Thread M6-1.0mm 30mm M6-1.0mm 25mm M6-1.0mm 20mm M6-1.0mm 15mm Hex Bolt 6mm Non-Thread M6-1.0mm 30mm (24mm thread length) M6-1.0mm 25mm (19mm thread length) M6-1.0mm 20mm (14mm thread length) M6-1.0mm 15mm (9mm thread length) Socket Bolt Full Thread M6-1.0mm x 25mm [June 25, 2023 addition] When printing, depending on the strength you need, you may want to have higher perimeter value, or use modifier in slicer to strengthen closer to head part by even higher perimeter and/or infill. Each bolt has thread surface offset by -0.1 mm so it functions with the printed nut. I personally put modifiers in the head to strengthen by adding more perimeters (12) but it is your choice. You may print with 2-3 perimeters with higher infill. I would really appreciate you if you can support me !!!
nut nuts bolt bolts m6
