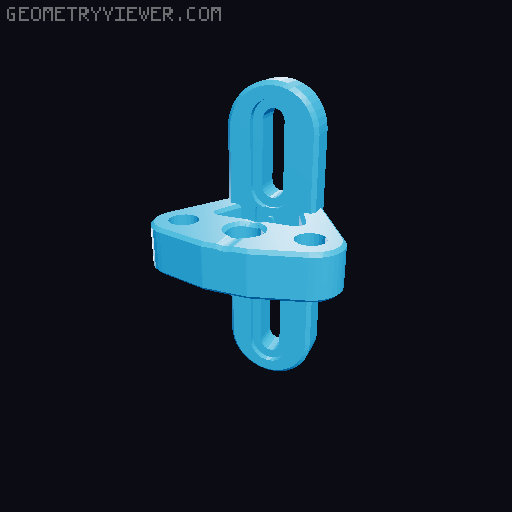

MAD Adjustable BLTouch mount (Volcano/V2S Compatible)
by OttoGlass · via Printables
| Format | STL |
| Category | Art |
| License | CC BY-NC-SA |
| Triangles | 7.9k |
| Uploaded | Jan 18, 2023 |
⬇ 70 downloads
❤ 7 likes
👁 548 views
Description
An adjustable mount for the MAD mod compatible with regular h2v2, E3D volcano upgrade, V2S Lite and Revo. x_offset: 36.5 y_offset:-38 Z has a 9.5mm position adjustment There are versions: 03_MAD__BLTOUCH_VOLCANO_WITH_GROOVE Is identical to the original mount except that it is ajustable 03_MAD__BLTOUCH_V21 v4_with_small_groovr Has a shallower groove to fit small headed m3x12mm screws And lastly 03_MAD__BLTOUCH_V21 v4_without_groove_offset fits regular allen m3x12mm screws in exchange for having a larger offset (y_offset:-41)
