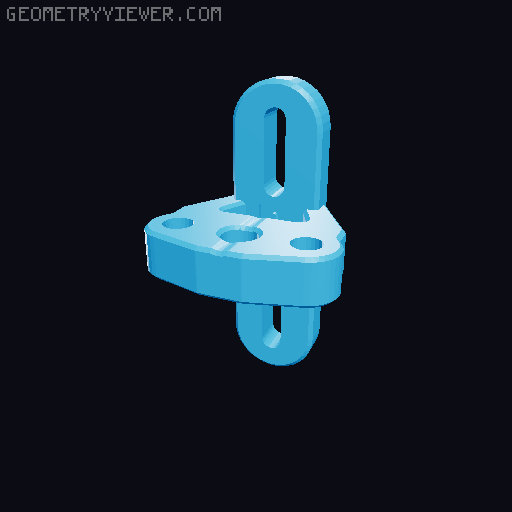

MAD Adjustable BLTouch mount (Volcano/V2S Compatible) 3D model thumbnail

MAD Adjustable BLTouch mount (Volcano/V2S Compatible)

by OttoGlass · via Printables
FormatSTL
CategoryArt
LicenseCC BY-NC-SA
Triangles7.7k
UploadedJan 18, 2023
⬇ 70 downloads ❤ 7 likes 👁 548 views

Description

An adjustable mount for the MAD mod compatible with regular h2v2, E3D volcano upgrade, V2S Lite and Revo. x_offset: 36.5 y_offset:-38 Z has a 9.5mm position adjustment There are versions: 03_MAD__BLTOUCH_VOLCANO_WITH_GROOVE Is identical to the original mount except that it is ajustable 03_MAD__BLTOUCH_V21 v4_with_small_groovr Has a shallower groove to fit small headed m3x12mm screws And lastly 03_MAD__BLTOUCH_V21 v4_without_groove_offset fits regular allen m3x12mm screws in exchange for having a larger offset (y_offset:-41)
volcano bltouchmount e3dvolcano e3dv6volcano mad volcanoe3d bltouchbracket biquh2v2 volcanohotend biquh2revo biquh2v2slite biquh2v2s

Originally published on Printables
