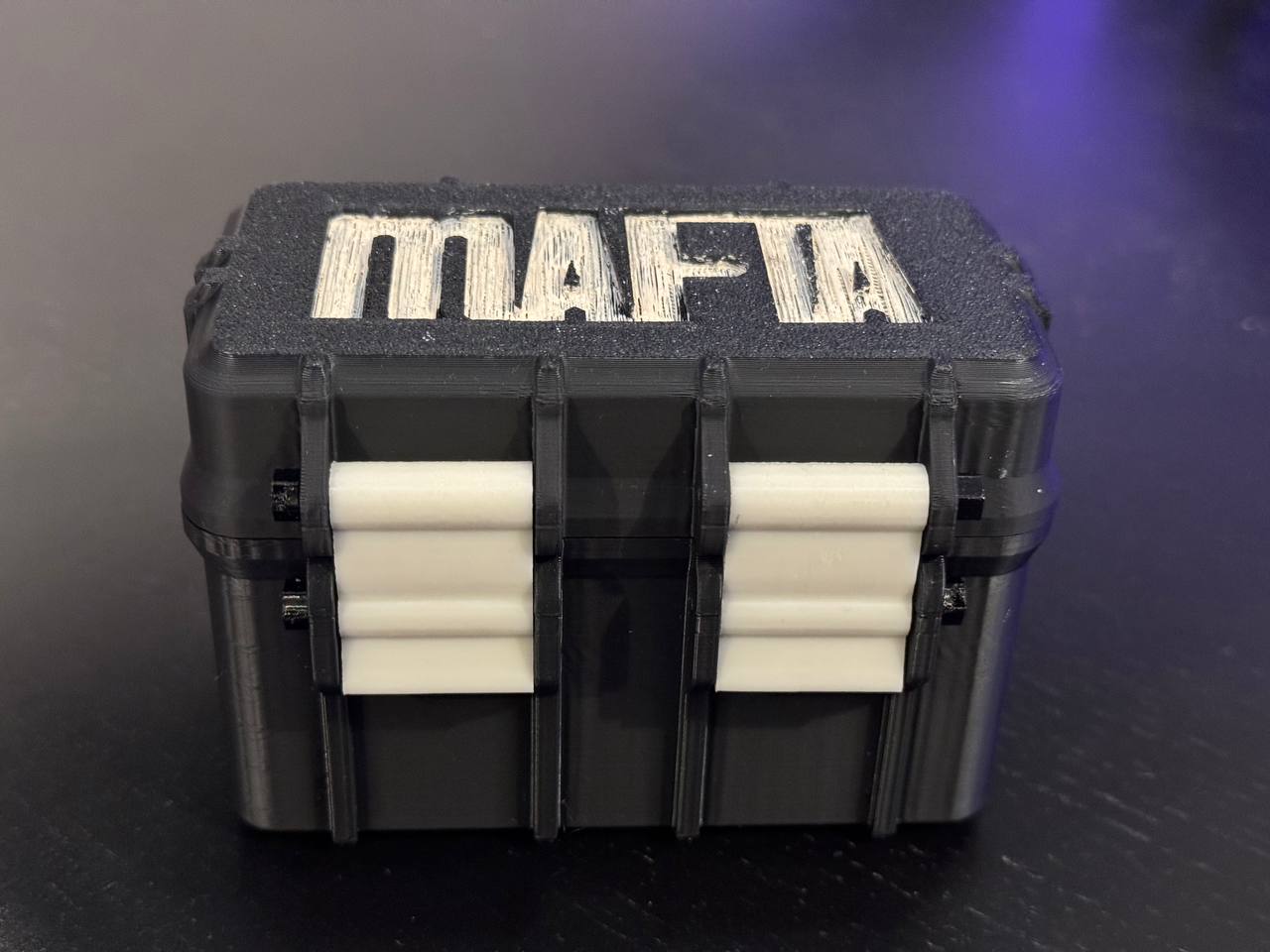

Mafia Card Game Rugged Box 3D model thumbnail

Mafia Card Game Rugged Box

by H.B.A · via Printables
FormatSTL
CategoryGadgets
LicenseCC BY-NC-SA
Triangles16.5k
UploadedJan 26, 2024
⬇ 58 downloads ❤ 4 likes 👁 309 views

Description

A remix of the Rugged Box by @Whity to store up to 15 Mafia game cards. I also provided a 3D printed M3x30 screws (designed by @kunaa) if you don't have real screws. I recommend printing them with PETG, mine came out good and I don't feel the need to replace them with metal ones since they're doing their job. What you'll need to print: 1x Box 1x Lid 2x Box Latch 6x M3x30 (Real ones would be better) The box is designed to store up to 15 cards. If you want to modify the box (you can get the fusion360 file from the original author), here are the recommended dimensions: 100% Scaled cards: InnerBoxDepth: 42mm InnerBoxWidth: 82mm for 15 cards, or [ 5.3mm * number of cards you want] InnerBoxBottomHeight: 45mm Rest: Leave as is 120% Scaled cards: InnerBoxDepth: 50mm InnerBoxWidth: 100mm for 15 cards, or [ 6.3mm * number of cards you want] InnerBoxBottomHeight: 55mm Rest: Leave as is
box storagebox cardholder ruggedbox
