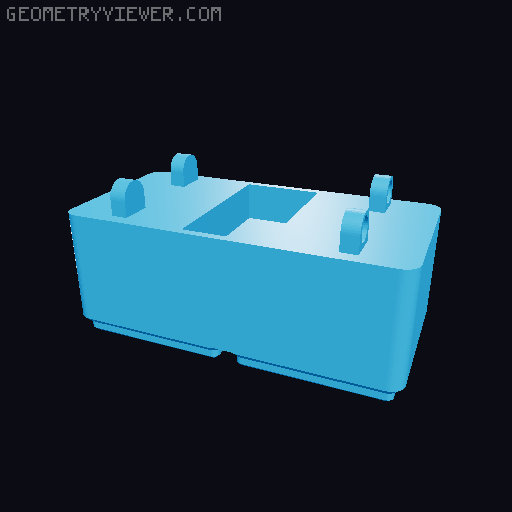

Magnet Insertion Tool v2

UPDATE 24.09.2024 8x3mm Magnet Variant added (not tested by me as i dont have those magnets. These magnets may be too strong for this variant) UPDATE 20.09.2024 6x3mm Magnet Variant added INTRODUCTION v2 of my Magnet Insertion Tool, with optimized Tip size trigger suspension self reloading Magnet Magazine PRINTING All parts are already in the correct orientation. “Tip” is the only part that requires Support Material. I printed everything in PLA. 0.2mm Layer height, 0.4mm Nozzle on a Anycubic kobra 2 Pro. FILAMENT i used PLA+ from Elegoo but any other Pla should work as well PLA+ from Elegoo (reflink) HARDWARE Magnet sizes currently tested and supported: 5x1mm 6x2mm 8x2mm 6x3mm 8x3mm (not tested) Other Hardware you need: 2x M3x6mm 3x M3x10mm Rubberband 3x Magnets of selected size ASSEMBLY There is a PDF attached to the files with assembly instructions as well as some simple Assembly steps shown in the Video I reccomend printing 2 tools. 1 for each pole of the magnet. I printed one in Red and one in blue. Support my work by becoming a PATREON or Buy me a Coffee
