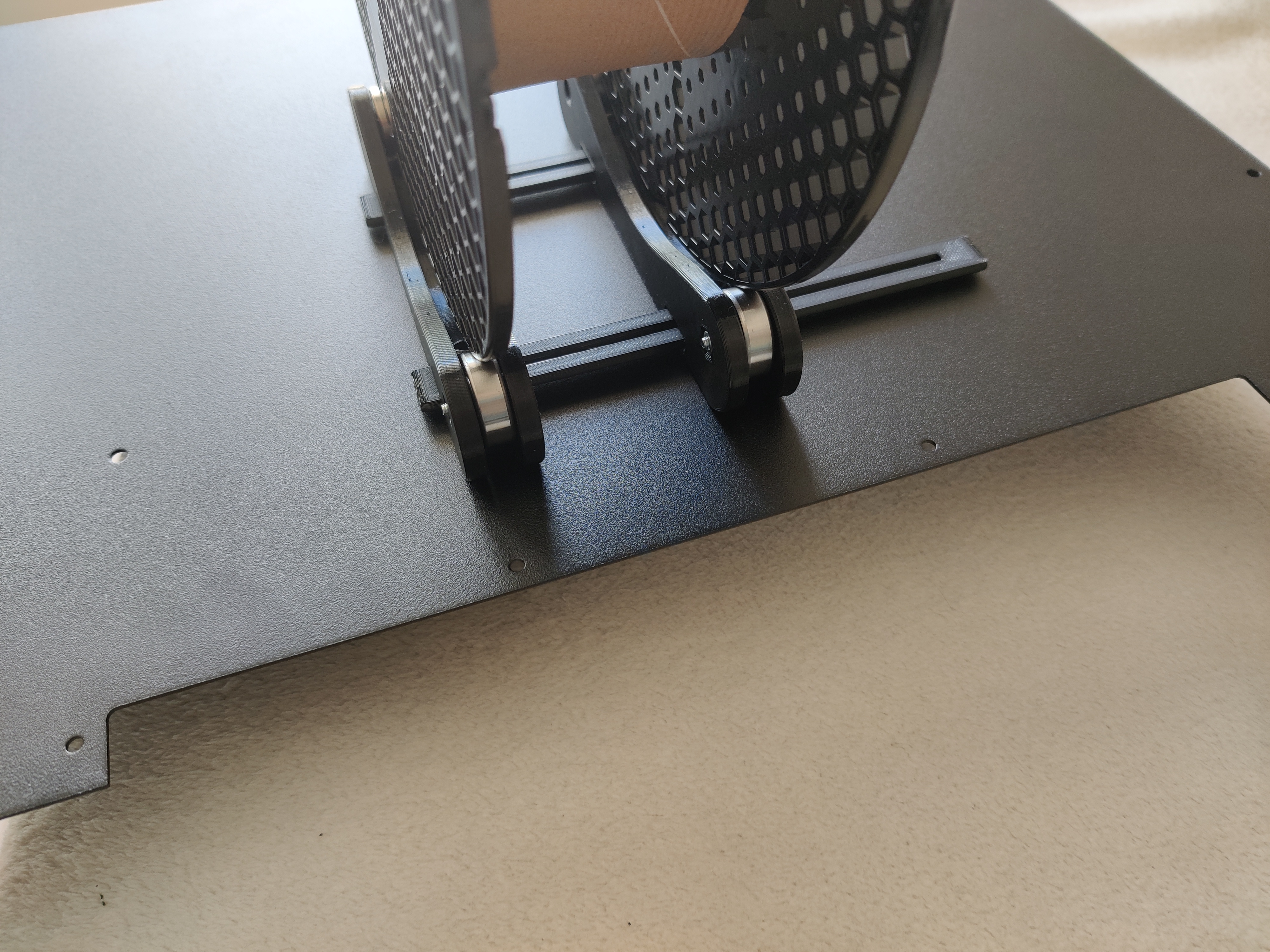

Magnetic adjustable spool holder 3D model thumbnail

Magnetic adjustable spool holder

by gybalazs · via Printables
FormatSTL
CategoryArt
LicenseCC BY-NC
Triangles5.4k
UploadedMay 11, 2022
⬇ 65 downloads ❤ 17 likes 👁 953 views

Description

In this remix I've added 2 holes for magnets, some texture to the bottom (to prevent sliding a bit) and nuts for rail mounting. The holder is able to fit the 2 kg spool of Prusament PLA/PETG Recycled. You will need: 2x 8x8mm (4mm height) square magnets (N48 or stronger) 4x screw M3 x 8 mm 4x screw M3 x 14 mm 8x nut M3 4x Bearings 608 Check the gcode for printing directions, print with 0.2 mm layer height. Assembly guide: Put in the screws and the nuts 📷 Image redacted — claim this model to add your own media Lay one of the pieces on the side and put in the magnets and the bearings 📷 Image redacted — claim this model to add your own media Tighten the screws which hold the bearings 📷 Image redacted — claim this model to add your own media Insert nuts for the rail holder screws 📷 Image redacted — claim this model to add your own media Tighten the rail holder screws for one of the pieces 📷 Image redacted — claim this model to add your own media Adjust the other piece for your spool width, and tighten that as well 📷 Image redacted — claim this model to add your own media (Optional) Place it on the top of your PrusaBox :)
AI Analysis: This magnetic spool holder securely holds thread or wire spools up to 2 kilograms. Its adjustable design allows for easy positioning on workbenches or tables, with a sturdy metal frame and roller mechanism to prevent the spool from slipping.
spool holder 2kg 2kgspool magnetic
