Magnetic Box – Compact Magnetic Closure Container

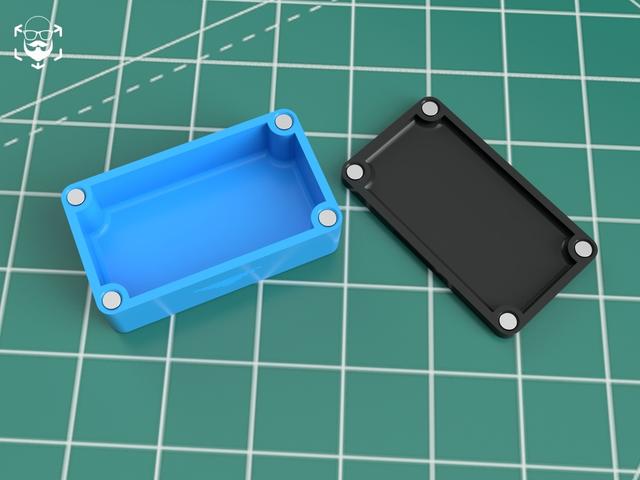

This compact magnetic box is composed of two main parts — Top and Bottom — designed to house 8 cylindrical magnets for a clean, reliable, and snap‑fit magnetic closure. The design is minimal, robust, and fully optimized for 3D printing without supports. It works perfectly as a small storage container for components, accessories, or everyday desk items. 📐 Technical Features The following specifications are derived from the official technical drawing: Overall Dimensions Length: 70 mm Width: 40 mm Total height: approx. 20 mm Wall thickness: 2–2.5 mm Internal and external fillets: R1, R4, R4.6 Matching geometries ensure perfect alignment between top and bottom Magnet Housing Total magnets: 8 (4 in the Top, 4 in the Bottom) Magnet seat diameter: Ø5.2 mm Outer safety diameter: Ø6.2 mm Designed for 5×3 mm round magnets Positioned at all four corners for uniform closure Parts List As reported in the technical document: Element Part Number Description 1 Top Lid 2 Bottom Base 3 Magnet Magnet housing 🖨️ 3D Printing Guidelines Recommended technology: FDM Materials: PLA, PETG, ABS Supports: Not required Infill: 15–25% Layer height: 0.2 mm Tolerances: Already integrated based on the technical drawing 🔧 Assembly Instructions Insert the magnets into the Bottom part, checking the polarity. Place the corresponding magnets on the Top , letting them snap into position. Apply a small amount of gel cyanoacrylate or epoxy. Close the box to ensure perfect alignment while the adhesive cures. 🎯 Suggested Uses Electronic components Mechanical small parts Desk accessories Small personal kits Quick and useful printable gift
