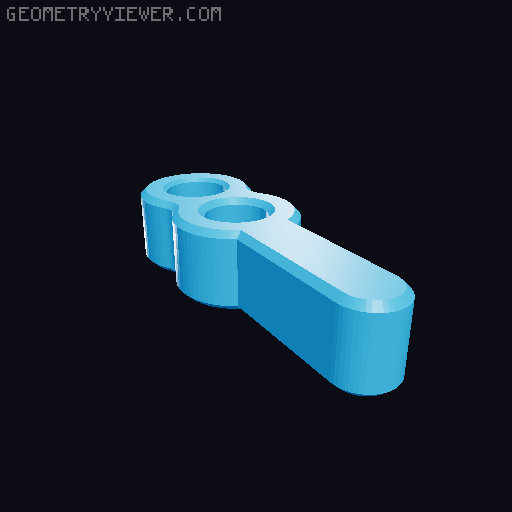

Magnetic fidget switch 3D model thumbnail

Magnetic fidget switch

by Gamma Design · via Printables
FormatSTL
CategoryOther
LicenseCC BY-NC-SA
Triangles2.0k
UploadedOct 27, 2024
⬇ 46 downloads ❤ 15 likes 👁 475 views

Description

The original plastic springs break very easily after just a day of clicking. This version uses magnet repulsion to achieve even stronger, reliable and more satisfying clicks, and it lasts (nearly) forever! It also uses M2.5/M3 screws to hold both sides together rather than glue. Uses 6x3mm and/or other magnets (depending on version) V1: 4 6x3mm magnets, 3 M3x8mm SHCS - slightly thicker than original V2 (coming soon): 2 6x3mm magnets, 2 7x2mm magnets, 3 M2.5x6mm SCHS - original size Press fit/glue magnets into the holes and assemble the top and bottom! Make sure magnet polarity is right.
switch magnet fidget snap click toggle clicker
